KYOCERA Precision Tools
TWE00800
KYOCERA Precision Tools TWE00800
Specifications
| Material | Carbide |
|---|---|

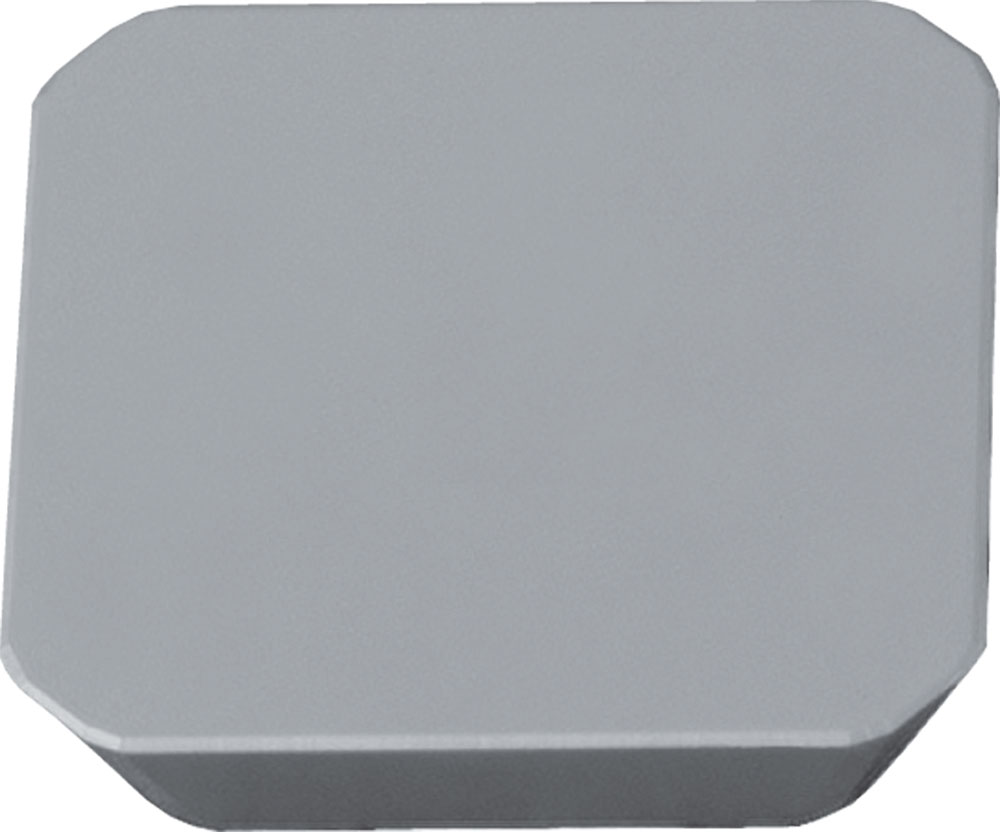

| Short Description | Kyocera SEKN 42AFFN KW10 Grade Uncoated Carbide, Indexable Milling Insert |
| Long Description | Kyocera SEKN 42AFFN KW10 Grade Uncoated Carbide, Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (N) Non-Ferrous Metals and (S) Titanium Alloy, (K) Gray Cast Iron |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 4 |
| Application | Chamfering|Facing |
| Insert Size | 42 |
| Cutting Range | Roughing |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23291601 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Insert Holding Method | Clamp |
| Insert Grade | KW10 |
| Insert Shape | 90 Degree Square |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
