KYOCERA Precision Tools
TWE02860
KYOCERA Precision Tools TWE02860
Specifications

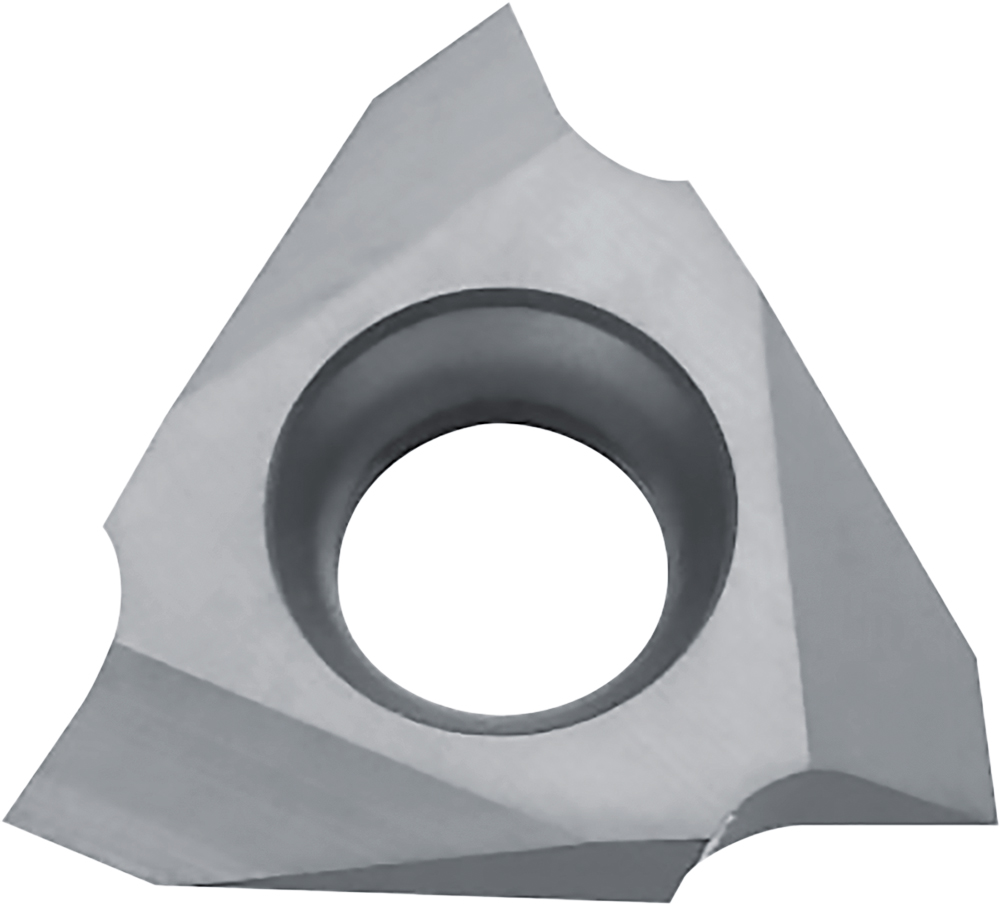

| Long Description | Kyocera TT 43R6002 KW10 Grade Uncoated Carbide, External & Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads |
|---|---|
| Material | Carbide |
| Short Description | Kyocera TT 43R6002 KW10 Grade Uncoated Carbide, Indexable Threading Insert |
| Pack Height (inches) | 0.472 |
| Harmonized Code | 8209.00.0030 |
| Thread Pitch (Metric) | M: 1.5-3.5, M: 3.0 |
| UNSPSC | 23291804 |
| Thread Pitch/TPI | UN: 16-8, UN: 8 |
| Primary Workpiece Material | (K) Cast Iron|(N) Non-Ferrous Materials |
| Thread Standard | Metric (M)|Unified (UN) |
| Insert Holding Method | Screw |
| Number of Cutting Edges | 3 |
| Insert Grade | KW10 |
| Insert Size | 43 |
| Thread Type | External & Internal |
| Pack Length (inches) | 4.331 |
| Pack Width (Inches) | 2.047 |
| Application | External Threading|Internal Threading |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| ECCN | EAR99 |
