KYOCERA Precision Tools
TWE03742
KYOCERA Precision Tools TWE03742
Specifications
| Material | Carbide |
|---|---|

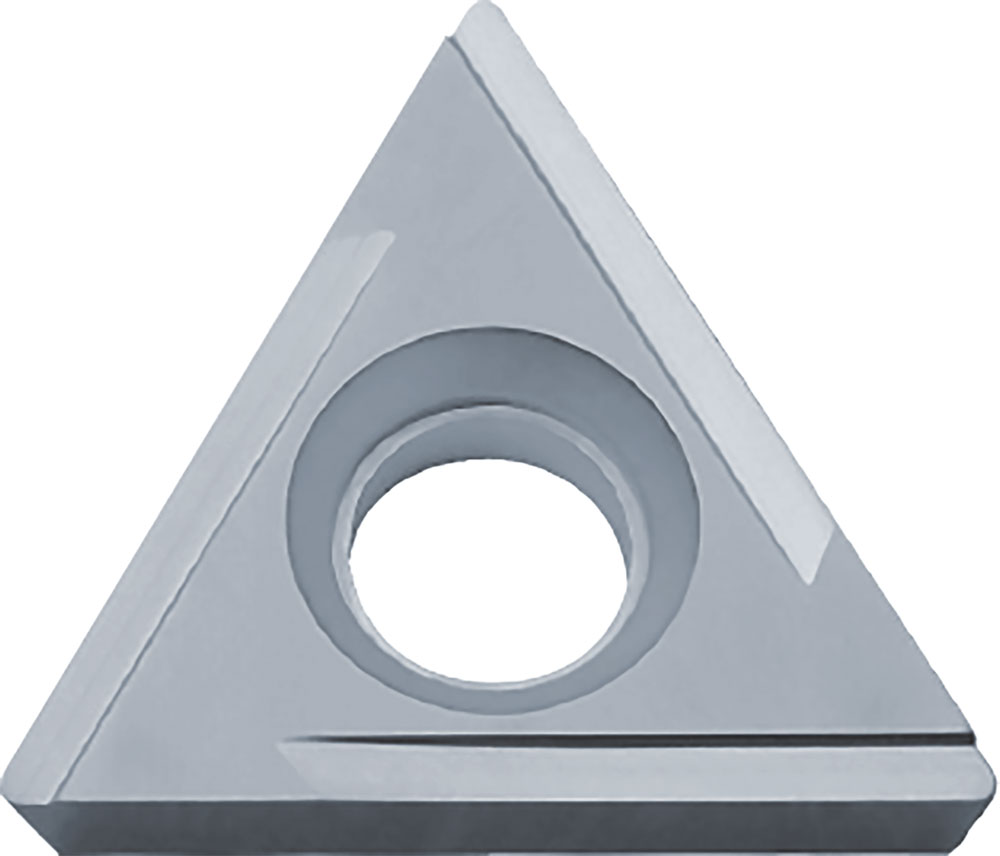

| Short Description | Kyocera TPGH 221LH KW10 Grade Uncoated Carbide, Indexable Turning Insert |
| Long Description | Kyocera TPGH 221LH KW10 Grade Uncoated Carbide, 11 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 3 |
| Application | Back Boring|Boring|Copying|External Turning|Internal Facing |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (N) Non-Ferrous Materials|(S) Titanium Alloy |
| Insert Grade | KW10 |
| Insert Size | 221 |
| Insert Shape | 60 Degree Triangle |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
