KYOCERA Precision Tools
TWG19929
KYOCERA Precision Tools TWG19929
Specifications
| Material | Carbide |
|---|---|

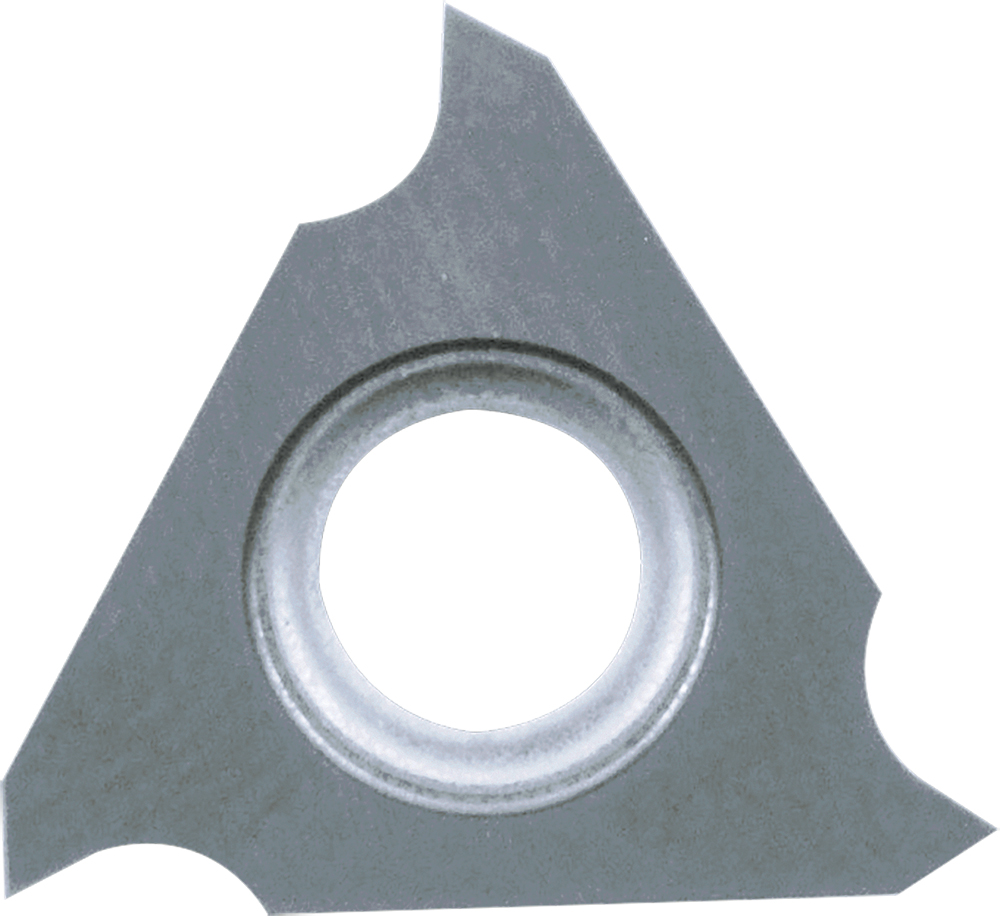

| Long Description | Kyocera GBF 32L130000F GW15 Grade Uncoated Carbide, 1.30mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Medium-Roughing in (K) Cast Iron, (N) Non-Ferrous Metals, (S) Titanium Alloy Materials |
| Short Description | Kyocera GBF 32L130000F GW15 Grade Uncoated Carbide, Indexable Grooving Insert |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 3 |
| Application | External Grooving |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Cutting Range | Medium-Roughing |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (K) Gray Cast Iron|(N) Non-Ferrous Materials|(S) Heat-Resistant Alloy |
| Insert Holding Method | Screw |
| Insert Grade | GW15 |
| Insert Size | 130 |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
