KYOCERA Precision Tools
TWG40005
KYOCERA Precision Tools TWG40005
Specifications

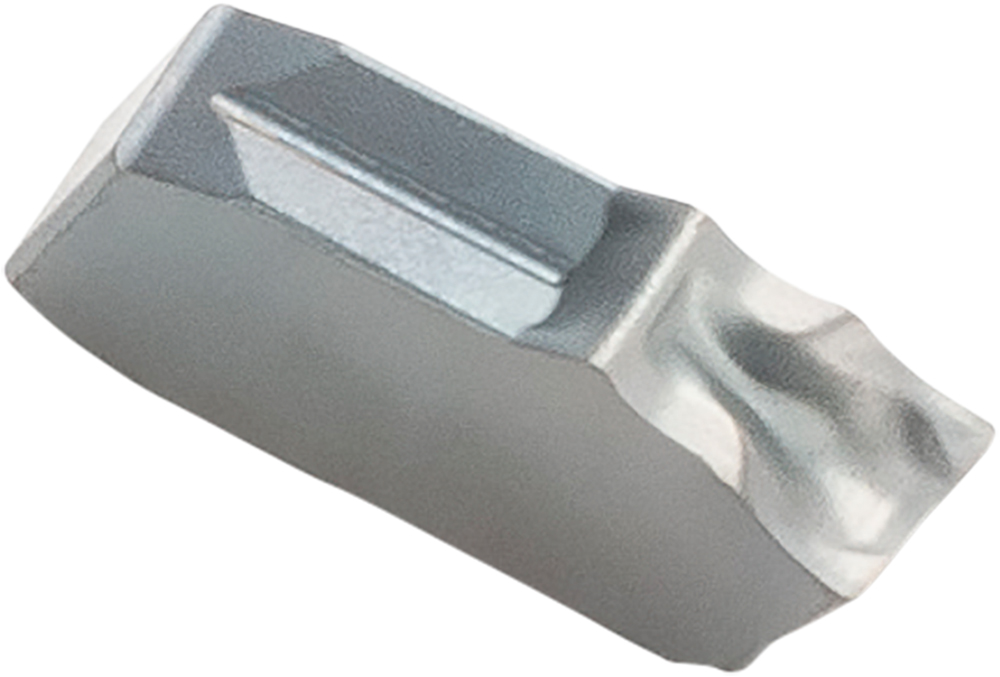

| Long Description | Kyocera PKM 20L020PM6D GW15 Grade Uncoated Carbide, 0.0790" Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy |
|---|---|
| Short Description | Kyocera PKM 20L020PM6D GW15 Grade Uncoated Carbide, Indexable Cut-Off Insert |
| Cutting Range | Finishing-Medium |
| Material | Carbide |
| Pack Height (inches) | 4.134 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (K) Cast Iron|(N) Non-Ferrous Materials |
| Insert Holding Method | Self-Clamp |
| Number of Cutting Edges | 1 |
| Insert Grade | GW15 |
| Insert Size | 20 |
| Pack Length (inches) | 0.394 |
| Pack Width (Inches) | 1.772 |
| Application | Cut-Off |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| ECCN | EAR99 |
