M.A. Ford
11646882C

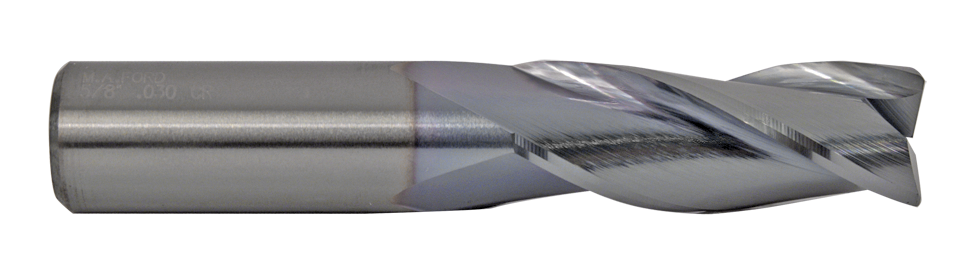

11383 15/32 X1-1/4 TICN .020CR
Specifications
| Number Of Flutes | 3 |
|---|---|
| Coating/Finish | TiCN |
| Material | Carbide |
| Overall Length (Inch) | 3 |
| Diameter (Inch) | 15/32 |
| Short Description | 11383 15/32 X1-1/4 TICN .020CR |
| Unit Of Measure | Fractional |
| Shank Diameter | 1/2 Inch |
| Corner Radius (Decimal) | 0.02 |
| Flute Length | 1-1/4 Inch |
| Helix Angle | 30 degrees |
| Series | TuffCut GP |
| Shank Type | Straight |
| GTIN | 697604113832 |
| Country of Origin | USA |
| Base Item Number | 11646882C |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 1/2 |
| Trade Name | TuffCut GP |
| Number Of Flutes (Right Hand) | 3 |
| Diameter (Decimal Inch) | 0.4688 |
| Corner Radius | .020R |
| End Grind | Corner Radius |
