M.A. Ford
12147245A

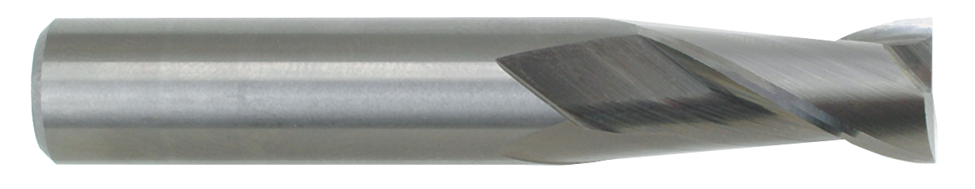

10483 12MM DIA 2.0MM CR ALTIMA
Specifications
| Number Of Flutes | 2 |
|---|---|
| Coating/Finish | ALtima |
| Material | Carbide |
| Overall Length (Metric) | 76 |
| Diameter (Inch) | 0.47 |
| Short Description | 10483 12MM DIA 2.0MM CR ALTIMA |
| Unit Of Measure | Metric |
| Shank Diameter | 12 mm |
| Flute Length | 25 mm |
| Overall Length | 76 mm |
| Helix Angle | 30 degrees |
| Shank Diameter (Metric) | 12.0 |
| Series | TuffCut GP |
| Shank Type | Straight |
| Corner Radius (Metric) | 2 |
| GTIN | 697604104830 |
| Country of Origin | USA |
| Base Item Number | 12147245A |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | TuffCut GP |
| Number Of Flutes (Right Hand) | 2 |
| Diameter (Decimal Inch) | 0.4724 |
| Corner Radius | 2.00R |
| End Grind | Corner Radius |
