M.A. Ford
13531500

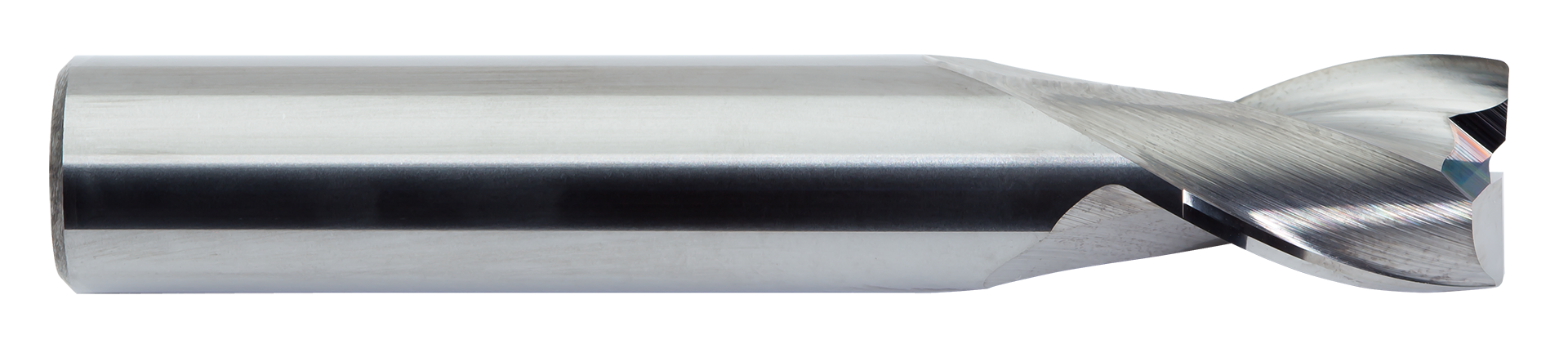

13508 8MM SERIES 135 64MM LOA
Specifications
| Number Of Flutes | 2 |
|---|---|
| Coating/Finish | Uncoated |
| Material | Carbide |
| Diameter (Metric) | 8 |
| Overall Length (Metric) | 64 |
| Diameter (Inch) | 0.32 |
| Short Description | 13508 8MM SERIES 135 64MM LOA |
| Unit Of Measure | Metric |
| Shank Diameter | 8 mm |
| Flute Length | 9.50 mm |
| Overall Length | 64 mm |
| Helix Angle | 30 degrees |
| Shank Diameter (Metric) | 8 |
| Series | TuffCut AL |
| Shank Type | Straight |
| Corner Radius (Metric) | 0.35 |
| GTIN | 697604135087 |
| Country of Origin | USA |
| Base Item Number | 13531500 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | TuffCut AL |
| Number Of Flutes (Right Hand) | 2 |
| Diameter (Decimal Inch) | 0.3150 |
| Corner Radius | 0.35R |
| End Grind | Corner Radius |
