M.A. Ford
13547203N5

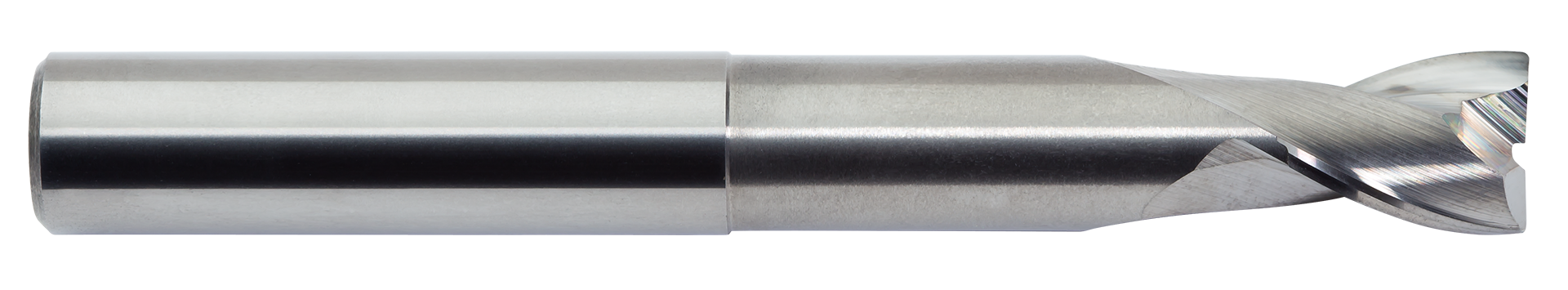

96679 12MM 5X REACH EM 1.0 CR
Specifications
| Number Of Flutes | 2 |
|---|---|
| Coating/Finish | Uncoated |
| Material | Carbide |
| Diameter (Metric) | 12 |
| Overall Length (Metric) | 110 |
| Diameter (Inch) | 0.47 |
| Short Description | 96679 12MM 5X REACH EM 1.0 CR |
| Unit Of Measure | Metric |
| Shank Diameter | 12 mm |
| Flute Length | 14 mm |
| Overall Length | 110 mm |
| Helix Angle | 30 degrees |
| Shank Diameter (Metric) | 12.0 |
| Series | TuffCut AL |
| Shank Type | Straight |
| Corner Radius (Metric) | 1 |
| Neck Length (Metric) | 62 |
| GTIN | 697604966797 |
| Country of Origin | USA |
| Base Item Number | 13547203N5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | TuffCut AL |
| Number Of Flutes (Right Hand) | 2 |
| Diameter (Decimal Inch) | 0.4724 |
| Corner Radius | 1.00R |
| End Grind | Corner Radius |
