M.A. Ford
13578707N5

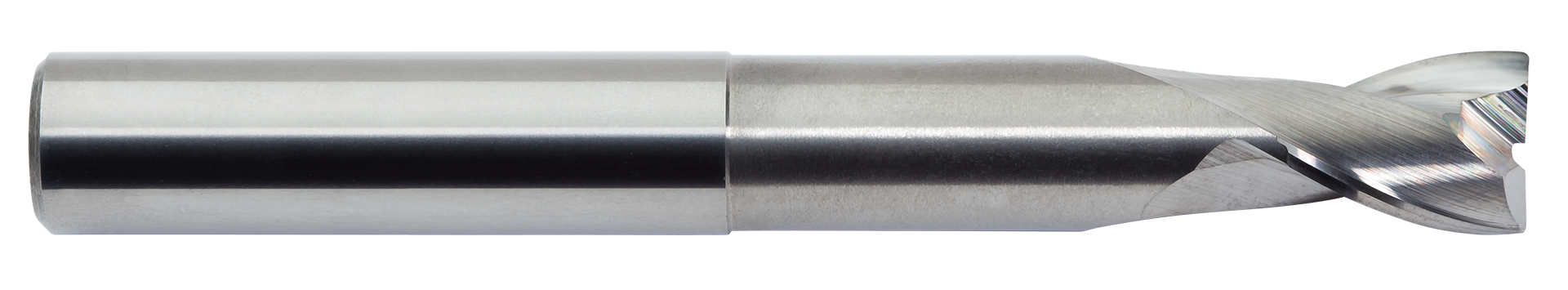

96707 20MM 5 X REACH ENDMILL 3
Specifications
| Number Of Flutes | 2 |
|---|---|
| Coating/Finish | Uncoated |
| Material | Carbide |
| Diameter (Metric) | 20 |
| Overall Length (Metric) | 152 |
| Diameter (Inch) | 0.79 |
| Short Description | 96707 20MM 5 X REACH ENDMILL 3 |
| Unit Of Measure | Metric |
| Shank Diameter | 20 mm |
| Flute Length | 22 mm |
| Overall Length | 152 mm |
| Helix Angle | 30 degrees |
| Shank Diameter (Metric) | 20.0 |
| Series | TuffCut AL |
| Shank Type | Straight |
| Corner Radius (Metric) | 3 |
| Neck Length (Metric) | 105 |
| GTIN | 697604967077 |
| Country of Origin | USA |
| Base Item Number | 13578707N5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | TuffCut AL |
| Number Of Flutes (Right Hand) | 2 |
| Diameter (Decimal Inch) | 0.7874 |
| Corner Radius | 3.00R |
| End Grind | Corner Radius |
