M.A. Ford
13837505R.015

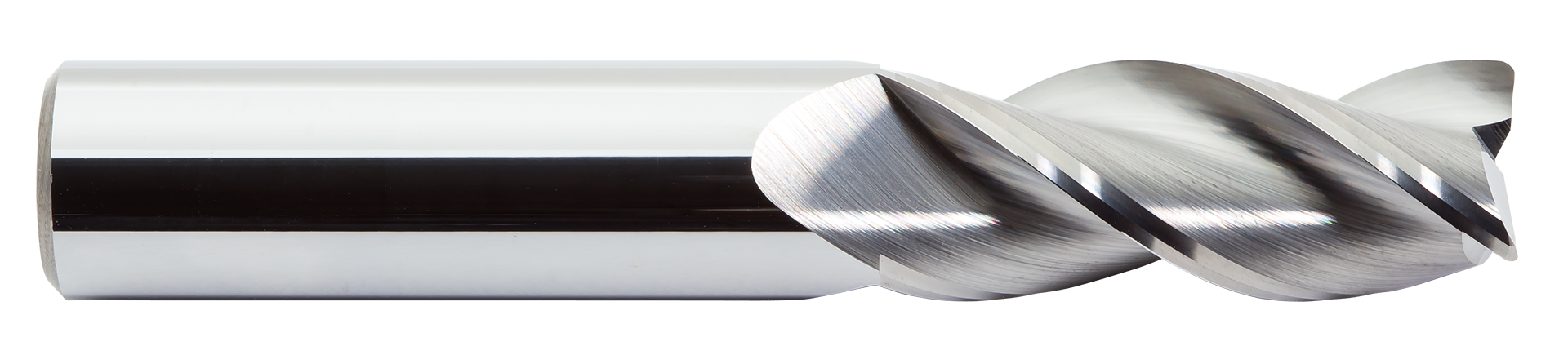

13008 ENDMILL 3/8X1X.015 RAD
Specifications
| Number Of Flutes | 3 |
|---|---|
| Coating/Finish | Uncoated |
| Material | Carbide |
| Overall Length (Inch) | 2-1/2 |
| Diameter (Inch) | 3/8 |
| Short Description | 13008 ENDMILL 3/8X1X.015 RAD |
| Unit Of Measure | Fractional |
| Shank Diameter | 3/8 Inch |
| Corner Radius (Decimal) | 0.02 |
| Flute Length (Decimal) | 1 |
| Overall Length | 2-1/2 Inch |
| Helix Angle | 36 degrees |
| Series | TuffCut X-AL |
| Shank Type | Straight |
| GTIN | 697604130082 |
| Country of Origin | USA |
| Base Item Number | 13837505R.015 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 3/8 |
| Trade Name | TuffCut X-AL |
| Number Of Flutes (Right Hand) | 3 |
| Diameter (Decimal Inch) | 0.3750 |
| Corner Radius | .015R |
| End Grind | Corner Radius |
