M.A. Ford
138B4724N5

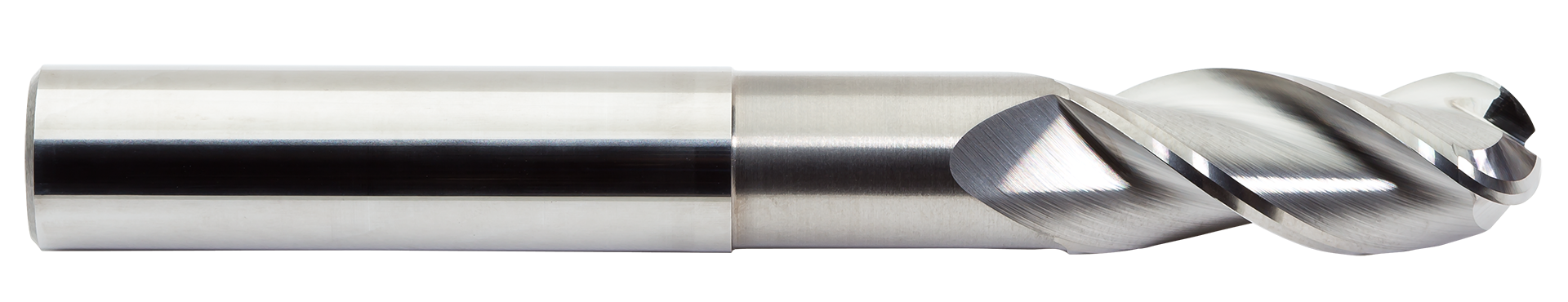

13386 12MM 5 X REACH BALL ENDM
Specifications
| Shank Type | Straight |
|---|---|
| Overall Length (Metric) | 120 |
| Material | Carbide |
| Short Description | 13386 12MM 5 X REACH BALL ENDM |
| Neck Length (Metric) | 62.0 |
| Country of Origin | United States of America |
| Shank Diameter (Metric) | 12.0 |
| Diameter (Decimal Inch) | 0.4724 |
| Helix Angle | 36° |
| Trade Name | TuffCut X-AL |
| GTIN | 00697604133861 |
| Number Of Flutes (Right Hand) | 3 |
| Coating | Uncoated |
| End Grind | Ball |
