M.A. Ford
17721810A

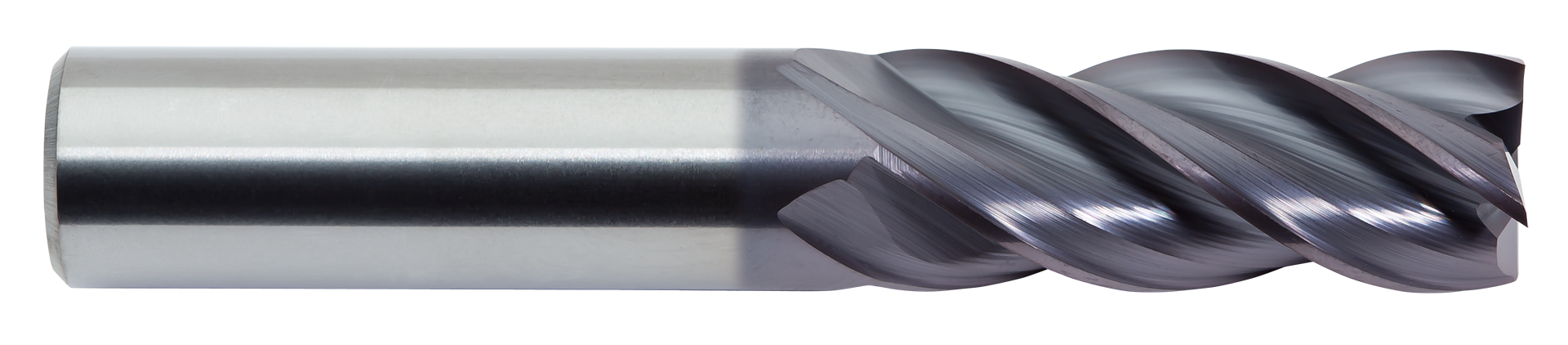

17707 7/32X1/4X7/16X2.5 ENDMIL
Specifications
| Shank Type | Straight |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Number Of Flutes | 4 |
| Material | Carbide |
| Coating/Finish | ALtima |
| Diameter (Inch) | 7/32 |
| Unit Of Measure | Fractional |
| Helix Angle | 35 degrees/38 degrees |
| Short Description | 17707 7/32X1/4X7/16X2.5 ENDMIL |
| Shank Diameter | 1/4 Inch |
| Series | TuffCut XR |
| Flute Length | 7/16 Inch |
| End Grind | Square |
| GTIN | 697604177070 |
| Country of Origin | USA |
| Base Item Number | 17721810A |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 1/4 |
| Unit of Measure | Fractional |
| Trade Name | TuffCut XR |
| Number Of Flutes (Right Hand) | 4 |
| Diameter (Decimal Inch) | 0.2187 |
