M.A. Ford
17750024A

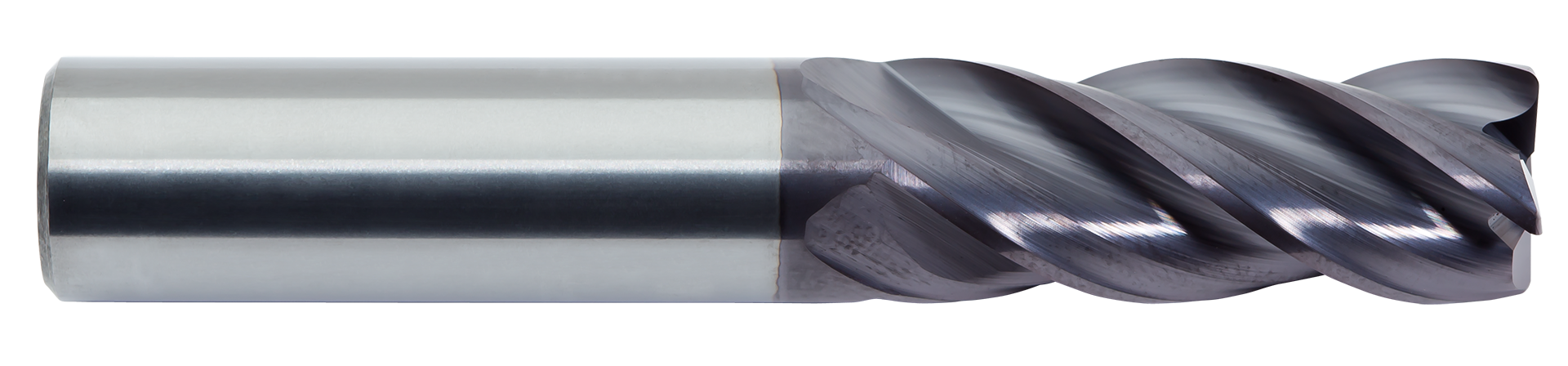

18096 1/2 X 1-1/4 X 3 X .030 R
Specifications
| Number Of Flutes | 4 |
|---|---|
| Coating/Finish | ALtima |
| Material | Carbide |
| Overall Length (Inch) | 3 |
| Diameter (Inch) | 1/2 |
| Short Description | 18096 1/2 X 1-1/4 X 3 X .030 R |
| Unit Of Measure | Fractional |
| Shank Diameter | 1/2 Inch |
| Corner Radius (Decimal) | 0.03 |
| Flute Length | 1-1/4 Inch |
| Helix Angle | 35 degrees/38 degrees |
| Series | TuffCut XR |
| Shank Type | Straight |
| GTIN | 697604180964 |
| Country of Origin | USA |
| Base Item Number | 17750024A |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 1/2 |
| Trade Name | TuffCut XR |
| Number Of Flutes (Right Hand) | 4 |
| Diameter (Decimal Inch) | 0.5000 |
| Corner Radius | .030R |
| End Grind | Corner Radius |
