M.A. Ford
17778703A

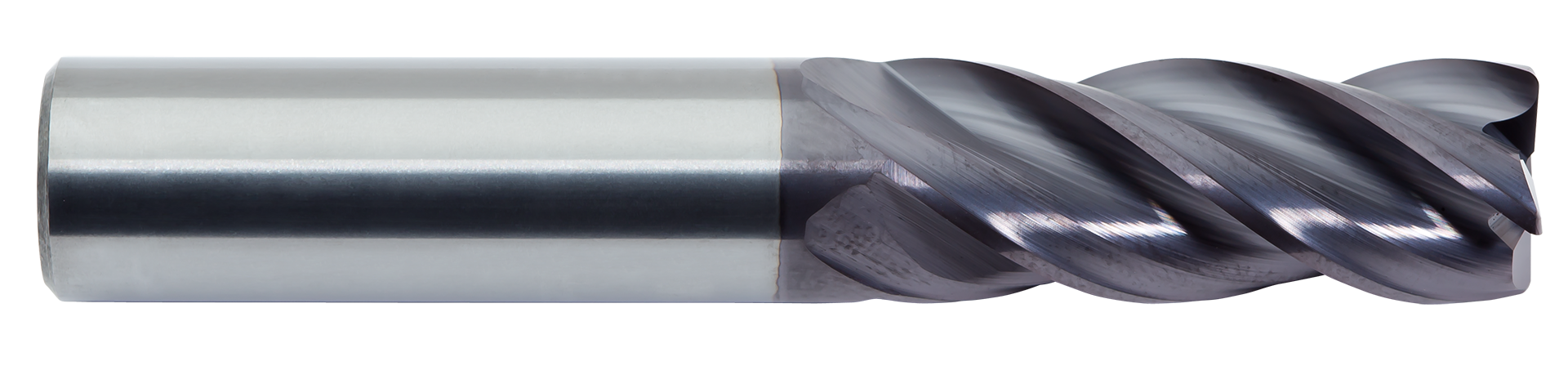

17956 20MM X 38MM X104 X 1MM R
Specifications
| Number Of Flutes | 4 |
|---|---|
| Coating/Finish | ALtima |
| Material | Carbide |
| Overall Length (Metric) | 104 |
| Diameter (Inch) | 0.79 |
| Short Description | 17956 20MM X 38MM X104 X 1MM R |
| Unit Of Measure | Metric |
| Shank Diameter | 20 mm |
| Flute Length | 38 mm |
| Overall Length | 104 mm |
| Helix Angle | 35 degrees/38 degrees |
| Shank Diameter (Metric) | 20.0 |
| Series | TuffCut XR |
| Shank Type | Straight |
| Corner Radius (Metric) | 1 |
| GTIN | 697604179562 |
| Country of Origin | USA |
| Base Item Number | 17778703A |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | TuffCut XR |
| Number Of Flutes (Right Hand) | 4 |
| Diameter (Decimal Inch) | 0.7874 |
| Corner Radius | 1.00R |
| End Grind | Corner Radius |
