M.A. Ford
17825014A

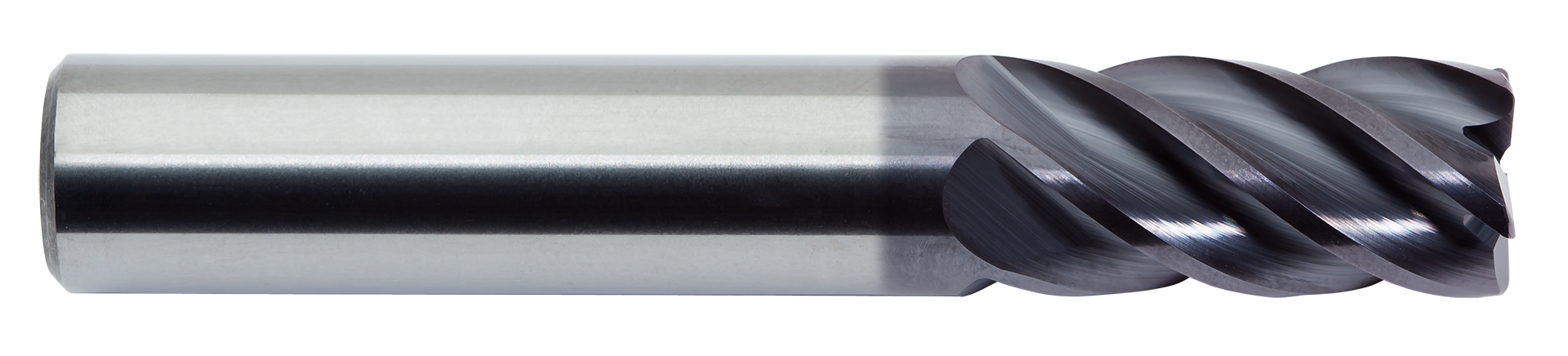

17832 1/4 X 5/8 X 2.5 X .030 R
Specifications
| Number Of Flutes | 5 |
|---|---|
| Coating/Finish | ALtima |
| Material | Carbide |
| Overall Length (Inch) | 2-1/2 |
| Diameter (Inch) | 1/4 |
| Short Description | 17832 1/4 X 5/8 X 2.5 X .030 R |
| Unit Of Measure | Fractional |
| Shank Diameter | 1/4 Inch |
| Corner Radius (Decimal) | 0.03 |
| Flute Length | 5/8 Inch |
| Overall Length | 2-1/2 Inch |
| Helix Angle | 38 degrees |
| Series | TuffCut XR |
| Shank Type | Straight |
| GTIN | 697604178329 |
| Country of Origin | USA |
| Base Item Number | 17825014A |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 1/4 |
| Trade Name | TuffCut XR |
| Number Of Flutes (Right Hand) | 5 |
| Diameter (Decimal Inch) | 0.2500 |
| Corner Radius | .030R |
| End Grind | Corner Radius |
