M.A. Ford
17839301A

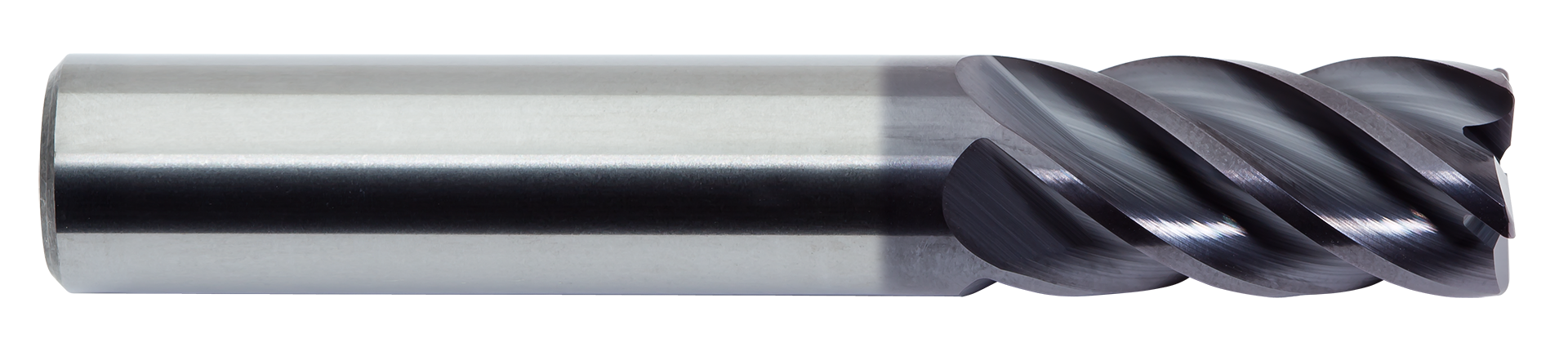

17972 10MM X 22MM X72 X .5MM R
Specifications
| Number Of Flutes | 5 |
|---|---|
| Coating/Finish | ALtima |
| Material | Carbide |
| Overall Length (Metric) | 72 |
| Diameter (Inch) | 0.39 |
| Short Description | 17972 10MM X 22MM X72 X .5MM R |
| Unit Of Measure | Metric |
| Shank Diameter | 10 mm |
| Flute Length | 22 mm |
| Overall Length | 72 mm |
| Helix Angle | 38 degrees |
| Shank Diameter (Metric) | 10.0 |
| Series | TuffCut XR |
| Shank Type | Straight |
| Corner Radius (Metric) | 0.5 |
| GTIN | 697604179722 |
| Country of Origin | USA |
| Base Item Number | 17839301A |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | TuffCut XR |
| Number Of Flutes (Right Hand) | 5 |
| Diameter (Decimal Inch) | 0.3937 |
| Corner Radius | 0.50R |
| End Grind | Corner Radius |
