M.A. Ford
18010002B

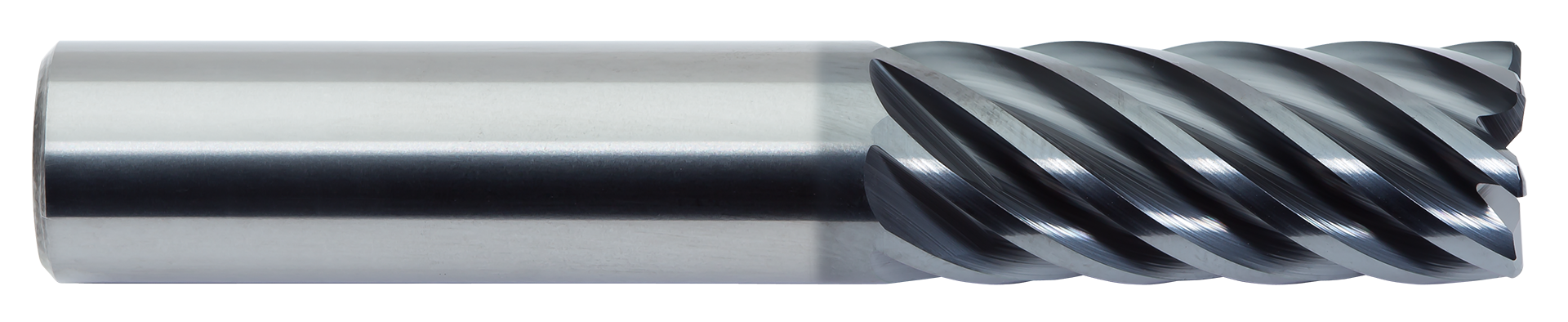

18599 1 X 1 X 4 .015 CR 7FLT
Specifications
| Number Of Flutes | 7 |
|---|---|
| Coating/Finish | ALtima Blaze |
| Material | Carbide |
| Overall Length (Inch) | 4 |
| Diameter (Inch) | 1 |
| Short Description | 18599 1 X 1 X 4 .015 CR 7FLT |
| Unit Of Measure | Imperial |
| Shank Diameter | 1 Inch |
| Corner Radius (Decimal) | 0.02 |
| Flute Length | 1 Inch |
| Overall Length | 4 Inch |
| Helix Angle | 38 degrees |
| Series | TuffCut XR7 |
| Shank Type | Straight |
| GTIN | 697604185990 |
| Country of Origin | USA |
| Base Item Number | 18010002B |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Diameter (Inch) | 1.0000 |
| Trade Name | TuffCut XR7 |
| Number Of Flutes (Right Hand) | 7 |
| Diameter (Decimal Inch) | 1.0000 |
| Corner Radius | .015R |
| End Grind | Corner Radius |
