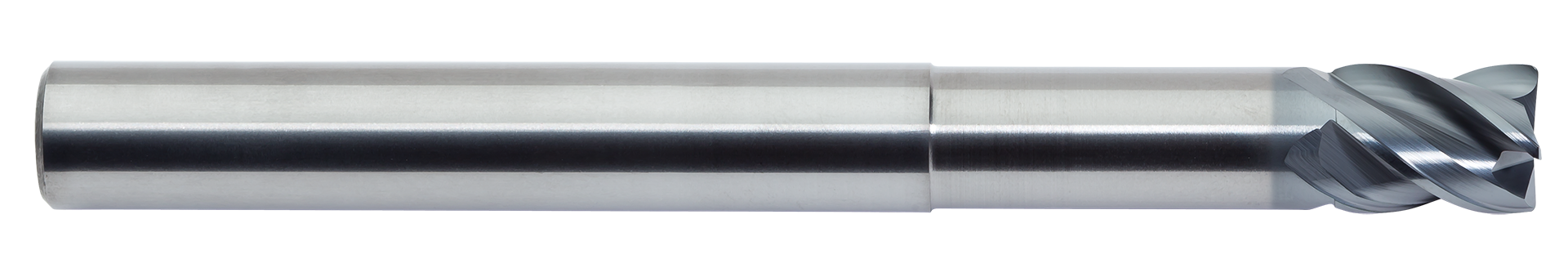

M.A. Ford
27737502N4B
27746 3/8X1/2X1-1/2X4 .015RAD
Specifications
| Number Of Flutes | 4 |
|---|---|
| Coating/Finish | ALtima Blaze |
| Material | Carbide |
| Overall Length (Inch) | 4 |
| Diameter (Inch) | 3/8 |
| Short Description | 27746 3/8X1/2X1-1/2X4 .015RAD |
| Unit Of Measure | Fractional |
| Shank Diameter | 3/8 Inch |
| Corner Radius (Decimal) | 0.02 |
| Flute Length | 1/2 Inch |
| Helix Angle | 38 degrees |
| Series | TuffCut XT |
| Shank Type | Straight |
| Neck Length (Fractional) | 1-1/2 |
| GTIN | 697604277466 |
| Country of Origin | USA |
| Base Item Number | 27737502N4B |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 3/8 |
| Trade Name | TuffCut XT |
| Number Of Flutes (Right Hand) | 4 |
| Diameter (Decimal Inch) | 0.3750 |
| Corner Radius | .015R |
| End Grind | Corner Radius |
