M.A. Ford
278100213B

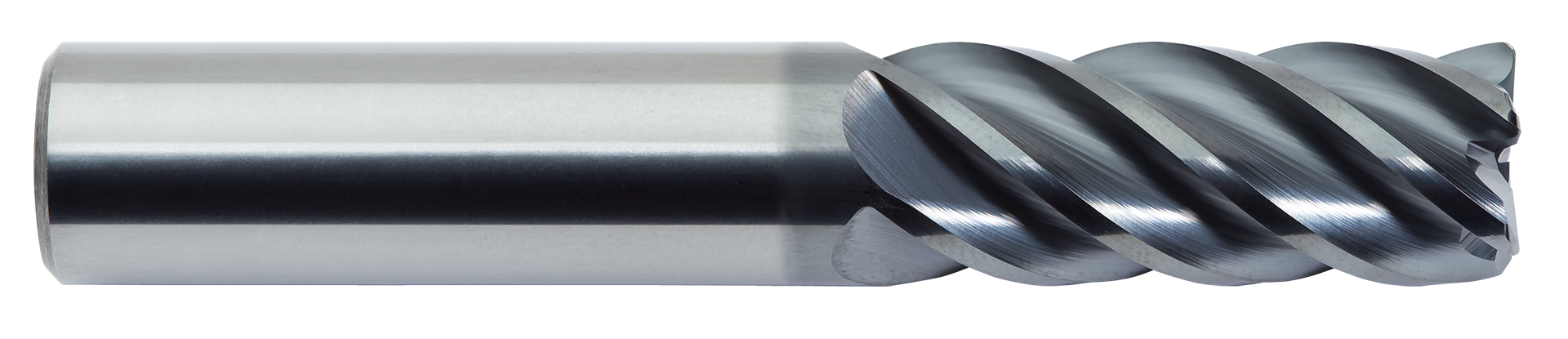

97564 XT 1 X 1-3/4 X 4 -.375CR
Specifications
| Number Of Flutes | 5 |
|---|---|
| Coating/Finish | ALtima Blaze |
| Material | Carbide |
| Overall Length (Inch) | 4 |
| Diameter (Inch) | 1 |
| Short Description | 97564 XT 1 X 1-3/4 X 4 -.375CR |
| Unit Of Measure | Fractional |
| Corner Radius (Decimal) | 0.38 |
| Flute Length | 1-3/4 Inch |
| Helix Angle | 40 degrees |
| Series | TuffCut XT |
| Shank Type | Straight |
| Shank Diameter (Decimal) | 1 |
| GTIN | 697604975645 |
| Country of Origin | USA |
| Base Item Number | 278100213B |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 1.0000 |
| Trade Name | TuffCut XT |
| Number Of Flutes (Right Hand) | 5 |
| Diameter (Decimal Inch) | 1.0000 |
| Corner Radius | .375R |
| End Grind | Corner Radius |
