M.A. Ford
27837517B

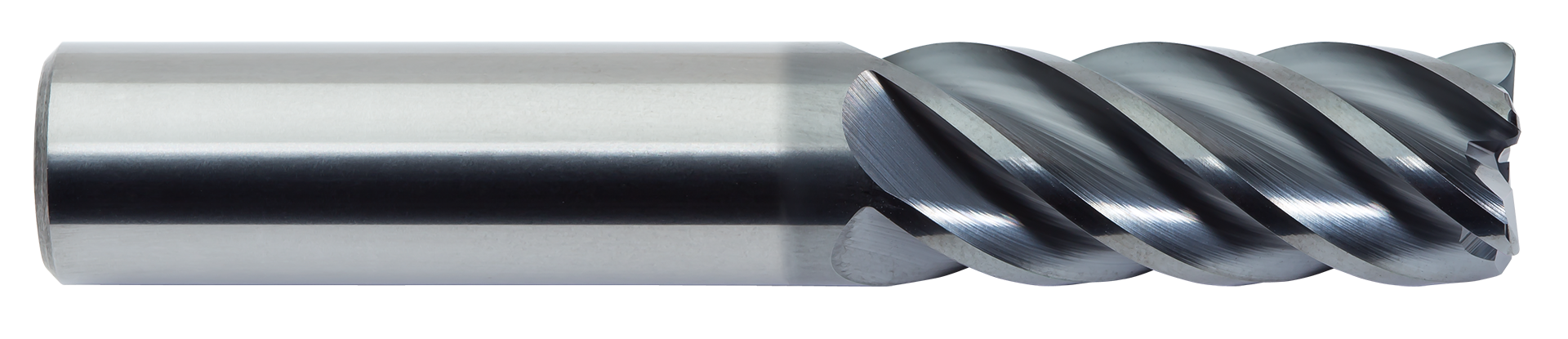

97137 XT ENDMILL 3/8X1X.090
Specifications
| Number Of Flutes | 5 |
|---|---|
| Coating/Finish | ALtima Blaze |
| Material | Carbide |
| Overall Length (Inch) | 2-1/2 |
| Diameter (Inch) | 3/8 |
| Short Description | 97137 XT ENDMILL 3/8X1X.090 |
| Unit Of Measure | Fractional |
| Shank Diameter | 3/8 Inch |
| Corner Radius (Decimal) | 0.09 |
| Flute Length (Decimal) | 1 |
| Overall Length | 2-1/2 Inch |
| Helix Angle | 40 degrees |
| Series | TuffCut XT |
| Shank Type | Straight |
| GTIN | 697604971371 |
| Country of Origin | USA |
| Base Item Number | 27837517B |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 3/8 |
| Trade Name | TuffCut XT |
| Number Of Flutes (Right Hand) | 5 |
| Diameter (Decimal Inch) | 0.3750 |
| Corner Radius | .090R |
| End Grind | Corner Radius |
