M.A. Ford
27862536B

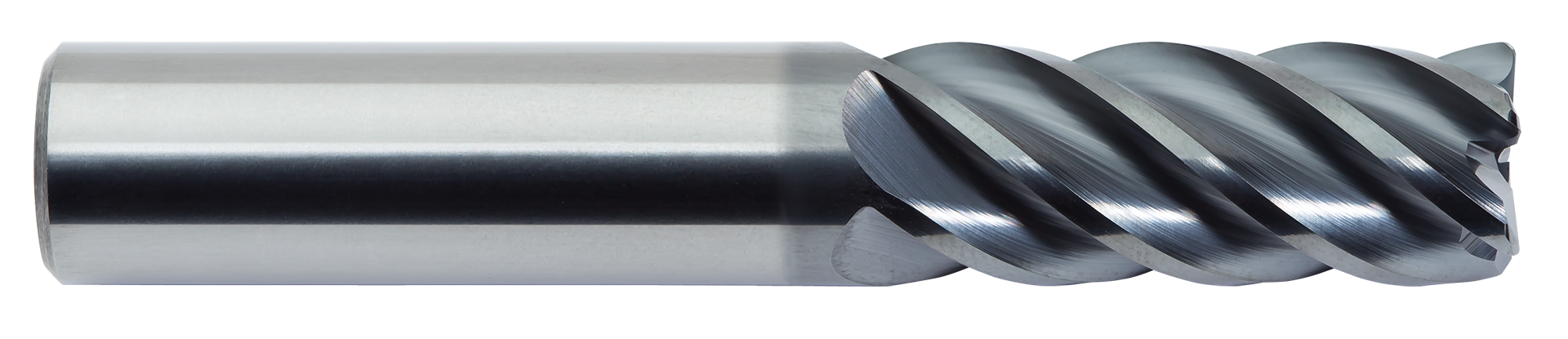

97374 XT 5/8X2-1/8X4 -.060CR
Specifications
| Number Of Flutes | 5 |
|---|---|
| Coating/Finish | ALtima Blaze |
| Material | Carbide |
| Overall Length (Inch) | 4 |
| Diameter (Inch) | 5/8 |
| Short Description | 97374 XT 5/8X2-1/8X4 -.060CR |
| Unit Of Measure | Fractional |
| Shank Diameter | 5/8 Inch |
| Corner Radius (Decimal) | 0.06 |
| Flute Length | 2-1/8 Inch |
| Helix Angle | 40 degrees |
| Series | TuffCut XT |
| Shank Type | Straight |
| GTIN | 697604973740 |
| Country of Origin | USA |
| Base Item Number | 27862536B |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 5/8 |
| Trade Name | TuffCut XT |
| Number Of Flutes (Right Hand) | 5 |
| Diameter (Decimal Inch) | 0.6250 |
| Corner Radius | .060R |
| End Grind | Corner Radius |
