M.A. Ford
27875064B

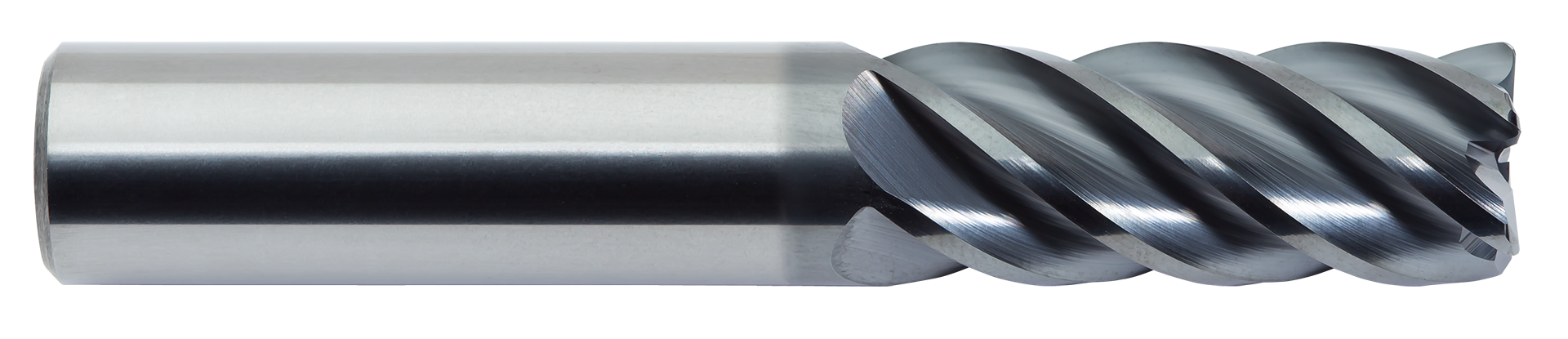

97503 XT 3/4X4-1/8X7 - .030CR
Specifications
| Number Of Flutes | 5 |
|---|---|
| Coating/Finish | ALtima Blaze |
| Material | Carbide |
| Overall Length (Inch) | 7 |
| Diameter (Inch) | 3/4 |
| Short Description | 97503 XT 3/4X4-1/8X7 - .030CR |
| Unit Of Measure | Fractional |
| Shank Diameter | 3/4 Inch |
| Corner Radius (Decimal) | 0.03 |
| Flute Length | 4-1/8 Inch |
| Helix Angle | 40 degrees |
| Series | TuffCut XT |
| Shank Type | Straight |
| GTIN | 697604975034 |
| Country of Origin | USA |
| Base Item Number | 27875064B |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 3/4 |
| Trade Name | TuffCut XT |
| Number Of Flutes (Right Hand) | 5 |
| Diameter (Decimal Inch) | 0.7500 |
| Corner Radius | .030R |
| End Grind | Corner Radius |
