M.A. Ford
2XDSS3622A

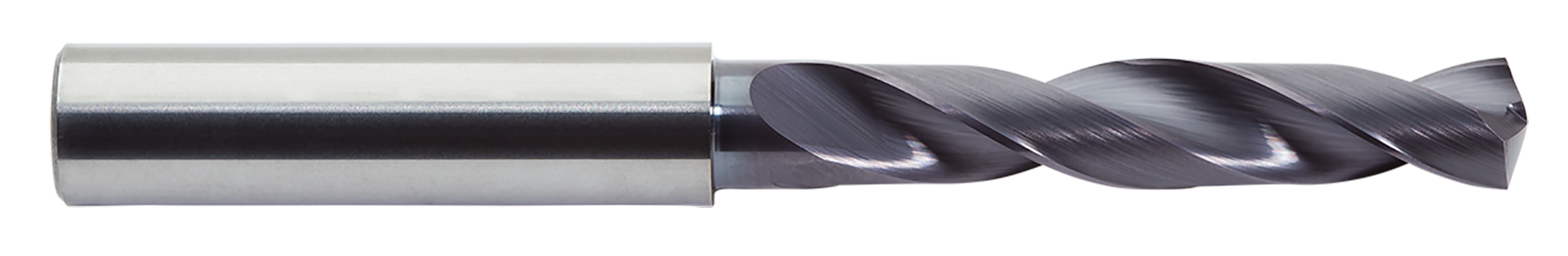

02238 DRILL 9.2MM SOLID STUB
Specifications
| Overall Length (Metric) | 89 |
|---|---|
| Material | Carbide |
| Short Description | 02238 DRILL 9.2MM SOLID STUB |
| Through Coolant | No |
| Flute Length (mm) | 4.3 cm |
| Shank Diameter (Metric) | 10.00 |
| Overall Length (mm) | 8.9 cm |
| Trade Name | Twister XD |
| Number Of Flutes | 2 |
| GTIN | 00697604022387 |
| Helix Angle | 30° |
| Number Of Flutes (Right Hand) | 2 |
| Diameter (Decimal Inch) | 0.3622 |
| Shank Diameter (mm) | 1.00 cm |
| Coolant-Thru | No |
| Included Angle | 140°-142° |
| Country of Origin | United States of America |
