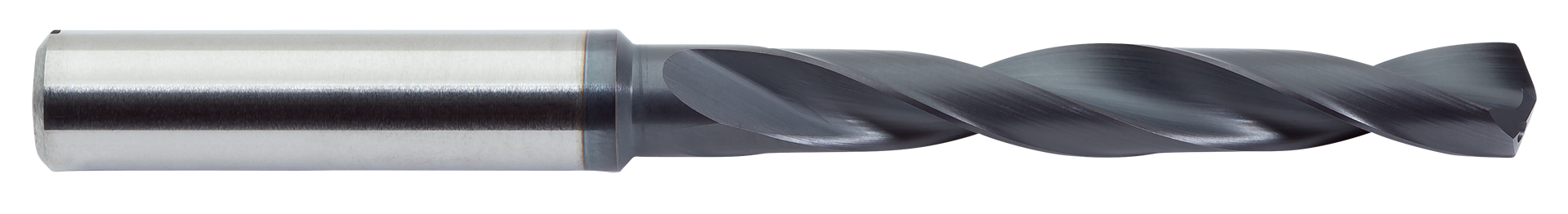

M.A. Ford
HPDCR 0900A
21760 9.0MM 5X HP COOLANT
Specifications
| Helix Angle | 30° |
|---|---|
| Shank Type | Straight |
| Material | Carbide |
| Included Angle | 140° |
| Overall Length (Metric) | 103 |
| Through Coolant | Yes |
| Shank Diameter (Metric) | 10.00 |
| GTIN | 00697604217608 |
| Short Description | 21760 9.0MM 5X HP COOLANT |
| Flute Length (mm) | 6.1 cm |
| Overall Length (mm) | 10.3 cm |
| Number Of Flutes (Right Hand) | 2 |
| Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 1.00 cm |
| Coolant-Thru | Yes |
| Specification | DIN 6537 L |
| Country of Origin | United States of America |
