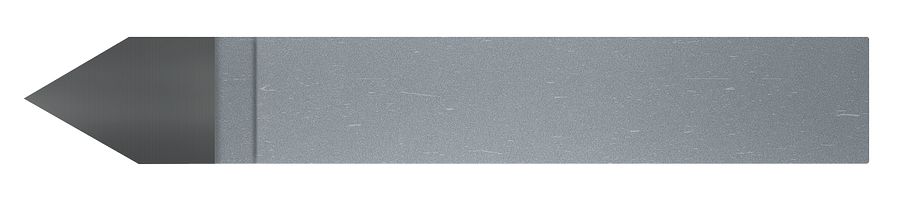

MICRO 100
E-8
E-8
Specifications
| Included Angle | 60 |
|---|---|
| Long Description | 0.500" (1/2) Brazed Insert Width x 0.5000" (1/2) Shank Height x 3.50" (3-1/2) Overall Length - Carbide Tipped Brazed E Style |
| Short Description | 0.500" (1/2) Brazed Insert Width x 0.5000" (1/2) Shank Height x 3.50" (3-1/2) OAL - Carbide Tipped Brazed E Style |
| Shank Width | 0.5000" (1/2) |
| Overall Length | 3.50" (3-1/2) |
| Shank Height | 0.5000" (1/2) |
| Coating | UN |
| Angle per Side | 30 |
