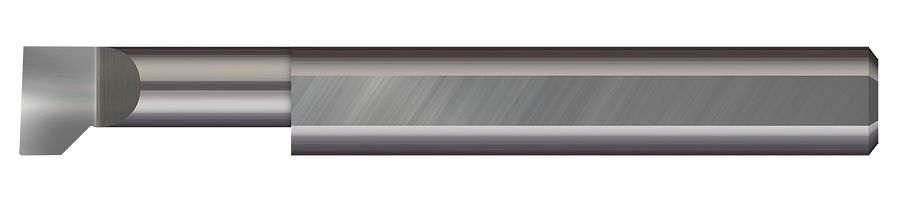

MICRO 100
LTR-187-8
LTR-187-8
Specifications
| Long Description | 0.2050" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0780" (5/64) Tooth Width x 0.0400" Projection x 0.1875" (3/16) Shank DIA x 2.00" (2) Overall Length x 0.005" Corner Radius - Carbide Thread Relief Right Hand |
|---|---|
| Short Description | Right Hand - 0.2050" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0780" (5/64) Tooth Width x 0.0400" Projection x 2.00" (2) OAL x 0.005" Corner Radius |
| Shank Diameter | 0.1875" (3/16) |
| Overall Length | 2.00" (2) |
| Projection | 0.0400" |
| Neck Diameter | 0.1480" |
| Coating | UN |
| Corner Radius | 0.005" |
