MICRO 100

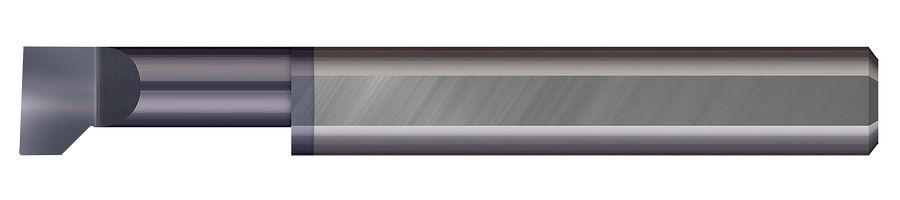

LTR-375-20X
LTR-375-20X
Specifications
| Long Description | 0.3970" Min Bore DIA x 1.250" (1-1/4) Max Bore Depth x 0.1250" (1/8) Tooth Width x 0.1000" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length x 0.005" Corner Radius - Carbide Thread Relief Right Hand, AlTiN Coated |
|---|---|
| Short Description | Right Hand - 0.3970" Min Bore DIA x 1.250" (1-1/4) Max Bore Depth x 0.1250" (1/8) Tooth Width x 0.1000" Projection x 2.50" (2-1/2) OAL x 0.005" Corner Radius - AlTiN Coated |
| Shank Diameter | 0.3750" (3/8) |
| Overall Length | 2.50" (2-1/2) |
| Projection | 0.1000" |
| Neck Diameter | 0.2700" |
| Coating | AlTiN |
| Corner Radius | 0.005" |
