MICRO 100
QPF-070200X
QPF-070200X
Specifications

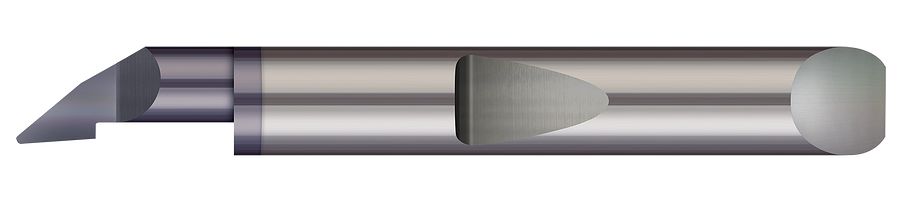

| Long Description | 0.0800" Min Bore DIA x 0.200" Max Bore Depth x 0.0600" Tooth Width x 0.0100" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.005" Corner Radius - Carbide Quick Change - Axial & Radial Profiling Right Hand, AlTiN Coated |
|---|---|
| Short Description | Quick Change - Right Hand - 0.0800" Min Bore DIA x 0.200" Max Bore Depth x 0.0600" Tooth Width x 0.0100" Projection x 1.50" (1-1/2) OAL x 0.005" Corner Radius - AlTiN Coated |
| Shank Diameter | 0.1875" (3/16) |
| Overall Length | 1.50" (1-1/2) |
| Projection | 0.0100" |
| Neck Diameter | 0.0600" |
| Coating | AlTiN |
| Corner Radius | 0.005" |
