Nachi
0694307

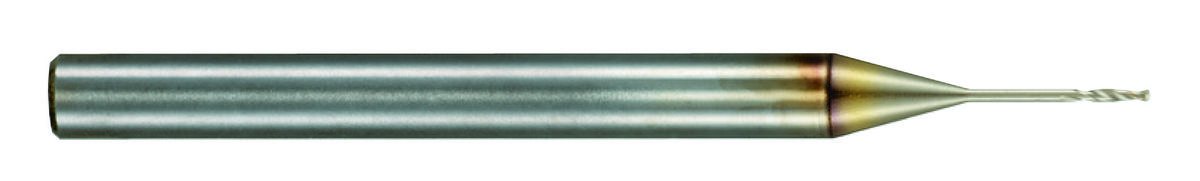

L7572P SG-ESS Stub Length Drill - 1.56mm
Specifications
| Diameter (Metric) | 1.56 |
|---|---|
| Coating/Finish | SG (TiN+TiCN) |
| Flute Type | CONVENTIONAL SPIRAL |
| Overall Length | 42 |
| Short Description | - SG-ESS Stub Length High Performance Drill - Premium Powdered Metal Cobalt Substrate - SG (TiN+TiCN) Coated - Self-Centering Point Geometry - Precision h6 Ground Shank |
| Cutting Direction | Right |
| Flute Length | 10 |
| Shank Size | 3 |
| Shank Type | Endmill Type Shank |
| Drill Point Angle | 118 |
| Point Length (in) | 0 |
| Neck Length | 11 |
| Coolant-Thru | No |
