Nachi
0717048

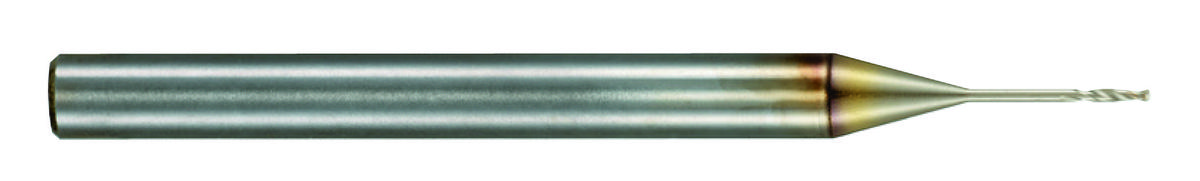

L7572P SG-ESS Stub Length Drill - 0.93mm
Specifications
| Diameter (Metric) | 0.93 |
|---|---|
| Coating/Finish | SG (TiN+TiCN) |
| Flute Type | CONVENTIONAL SPIRAL |
| Overall Length | 38 |
| Short Description | - SG-ESS Stub Length High Performance Drill - Premium Powdered Metal Cobalt Substrate - SG (TiN+TiCN) Coated - Self-Centering Point Geometry - Precision h6 Ground Shank |
| Cutting Direction | Right |
| Flute Length | 5.5 |
| Shank Size | 3 |
| Shank Type | Endmill Type Shank |
| Drill Point Angle | 118 |
| Point Length (in) | 0 |
| Neck Length | 6.5 |
| Coolant-Thru | No |
