Nachi
0720447

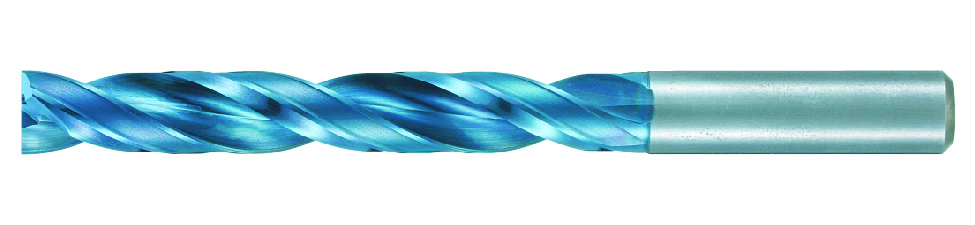

L9814 Aqua EX Flat Bottom Oil Hole 5D - 9.8mm
Specifications
| Coating/Finish | AQUA EX |
|---|---|
| Drill Point Angle | 180 |
| Short Description | - Carbide Coolant-Thru Flat Bottom Drill - AQUA EX Coated For High Wear Resistance - Double Margin Design For Added Stability - 180° Point Angle - Precision h6 Ground Shank |
| Flute Length | 65 |
| Shank Type | Endmill Type Shank |
| Shank Size | 10 |
| Overall Length | 126 |
| Cutting Direction | Right |
| Diameter (Metric) | 9.8 |
| Flute Type | CONVENTIONAL SPIRAL |
| Point Length (in) | 0 |
| Neck Length | 66 |
| Coolant-Thru | Yes |
