Nachi
0722273

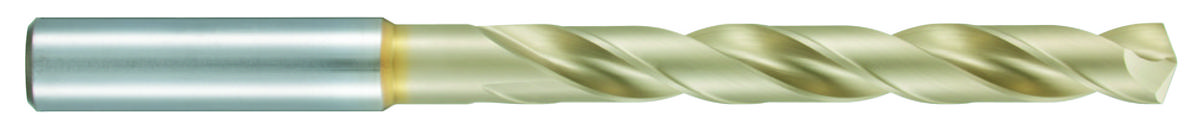

L7574P SG-ESR Jobber Length Drill - 6.5mm
Specifications
| Coating/Finish | SG (TiN+TiCN) |
|---|---|
| Diameter (Metric) | 6.5 |
| Short Description | - SG-ESR Jobber Length High Performance Drill - Premium Powdered Metal Cobalt Substrate - SG (TiN+TiCN) Coated - 135° Point Angle - Precision h6 Ground Shank |
| Cutting Direction | Right |
| Flute Length | 63 |
| Flute Type | CONVENTIONAL SPIRAL |
| Overall Length | 107 |
| Shank Size | 8 |
| Shank Type | Endmill Type Shank |
| Coolant-Thru | No |
| Point Length (in) | 0 |
| Neck Length | 65 |
| Drill Point Angle | 135 |
