Nachi
0722920

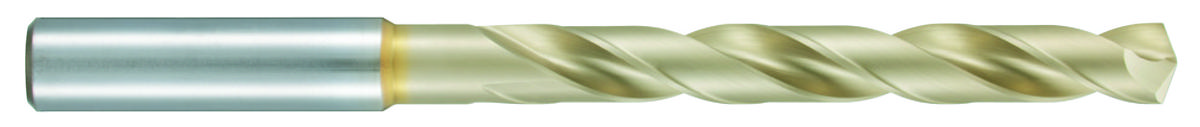

L7574P SG-ESR Jobber Length Drill - 13.0mm
Specifications
| Coating/Finish | SG (TiN+TiCN) |
|---|---|
| Diameter (Metric) | 13 |
| Short Description | - SG-ESR Jobber Length High Performance Drill - Premium Powdered Metal Cobalt Substrate - SG (TiN+TiCN) Coated - 135° Point Angle - Precision h6 Ground Shank |
| Cutting Direction | Right |
| Flute Length | 101 |
| Flute Type | CONVENTIONAL SPIRAL |
| Overall Length | 158 |
| Shank Size | 12 |
| Shank Type | Endmill Type Shank |
| Coolant-Thru | No |
| Point Length (in) | 0 |
| Neck Length | 103 |
| Drill Point Angle | 135 |
