Nachi
0724471

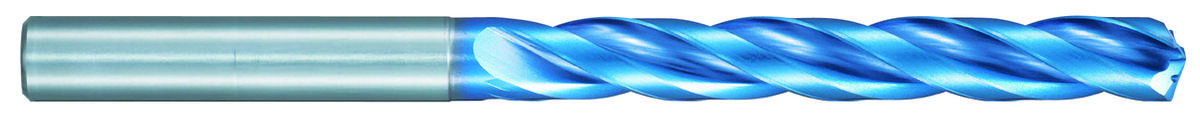

L9820 Aqua EX Oil Hole 3 Flute 5D- 11.0mm
Specifications
| Coating/Finish | AQUA EX |
|---|---|
| Drill Point Angle | 140 |
| Short Description | - Carbide Coolant-Thru 3 Flute Drill - AQUA EX Coated For High Wear Resistance - Increase Hole Quality - 140° Point Angle - Precision h6 Ground Shank - Not Recommended For Use In Forged Aluminum Alloys |
| Flute Length | 88 |
| Shank Type | Endmill Type Shank |
| Shank Size | 11 |
| Overall Length | 149 |
| Cutting Direction | Right |
| Diameter (Metric) | 11 |
| Flute Type | CONVENTIONAL SPIRAL |
| Point Length (in) | 0 |
| Neck Length | 90 |
| Coolant-Thru | Yes |
