Nachi
0733019

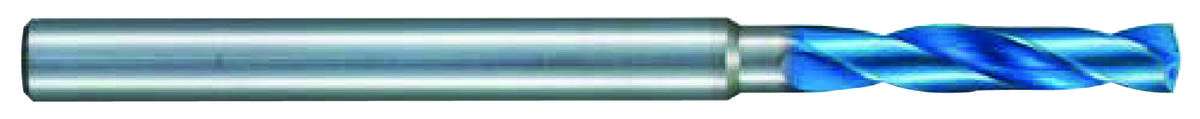

L9622 Aqua EX Oil Hole Pilot - 3.83mm
Specifications
| Coating/Finish | AQUA EX |
|---|---|
| Drill Point Angle | 150 |
| Short Description | - Carbide Coolant-Thru Pilot Drill - AQUA EX Coated For High Wear Resistance - Single Margin Design - 150° Point Angle To Ensure Deep Hole Starts On Chisel First - Precision h6 Ground Shank |
| Flute Length | 18 |
| Shank Type | Endmill Type Shank |
| Shank Size | 4 |
| Overall Length | 72 |
| Cutting Direction | Right |
| Diameter (Metric) | 3.83 |
| Flute Type | CONVENTIONAL SPIRAL |
| Point Length (in) | 0 |
| Neck Length | 20 |
| Coolant-Thru | Yes |
