Nachi
0734439

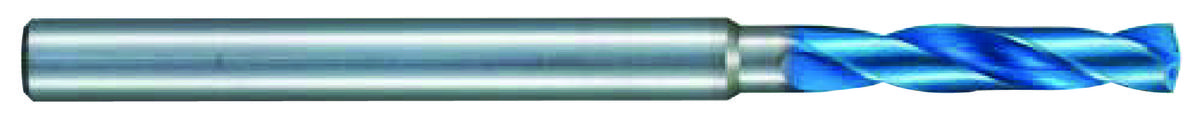

L9622 Aqua EX Oil Hole Pilot - 2.615mm
Specifications
| Coating/Finish | AQUA EX |
|---|---|
| Drill Point Angle | 150 |
| Short Description | - Carbide Coolant-Thru Micro Pilot Drill - AQUA EX Coated For High Wear Resistance - Single Margin Design - 150° Point Angle To Ensure Deep Hole Starts On Chisel First - Precision h6 Ground Shank |
| Flute Length | 12 |
| Shank Type | Endmill Type Shank |
| Shank Size | 3 |
| Overall Length | 68 |
| Cutting Direction | Right |
| Diameter (Metric) | 2.615 |
| Flute Type | CONVENTIONAL SPIRAL |
| Point Length (in) | 0 |
| Neck Length | 13 |
| Coolant-Thru | Yes |
