Nachi
0754698

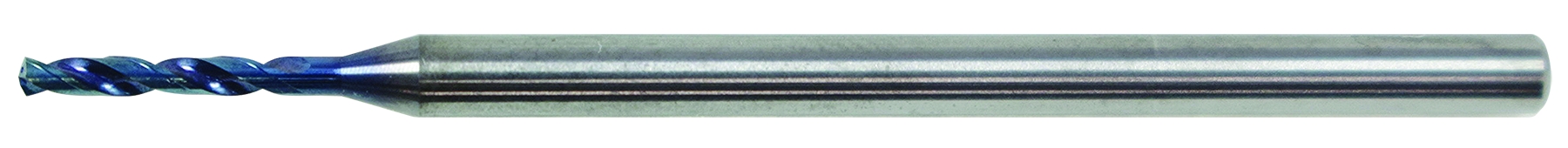

L9604 Aqua EX Oil Hole Micro 3D - 2.1mm
Specifications
| Coating/Finish | AQUA EX |
|---|---|
| Drill Point Angle | 135 |
| Short Description | - Carbide High Performance Flat Bottom Drill - AQUA EX Coated For High Wear Resistance - Single Margin, Sharp Corner Design - 180° Point Angle - Precision h6 Ground Shank |
| Flute Length | 13 |
| Shank Type | Endmill Type Shank |
| Shank Size | 3 |
| Overall Length | 63 |
| Cutting Direction | Right |
| Diameter (Metric) | 2.1 |
| Flute Type | CONVENTIONAL SPIRAL |
| Point Length (in) | 0 |
| Neck Length | 14 |
| Coolant-Thru | Yes |
