Nachi
0788679

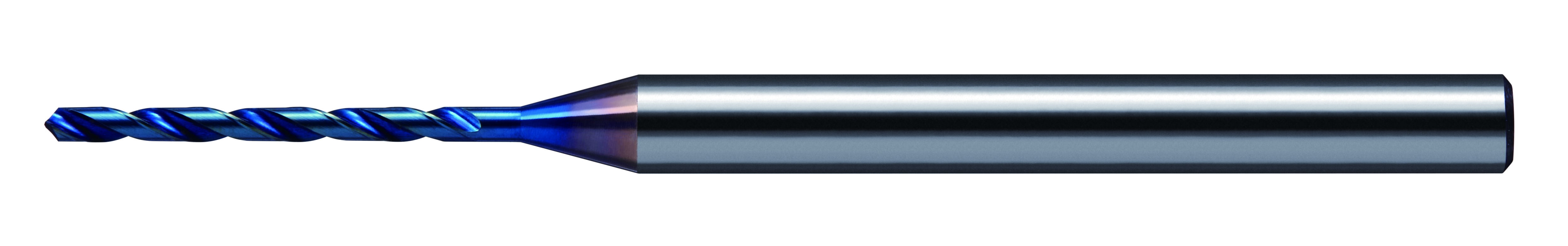

L9880 Aqua REVO Drill Micro 10D 1.16mm
Specifications
| Coating/Finish | REVO-D |
|---|---|
| Diameter (Metric) | 1.16 |
| Short Description | - High performance carbide micro drill - Ultra-fine grain substrate for improved durability - REVO-D coating for increased wear resistance - Exceptional hole position accuracy - Great for a wide variety of materials |
| Cutting Direction | Right |
| Flute Length | 14.4 |
| Flute Type | CONVENTIONAL SPIRAL |
| Overall Length | 45 |
| Shank Size | 3 |
| Shank Type | Endmill Type Shank |
| Coolant-Thru | NO |
| Point Length (in) | 0 |
| Neck Length | 15.4 |
| Drill Point Angle | 135 |
