Nachi
1315094

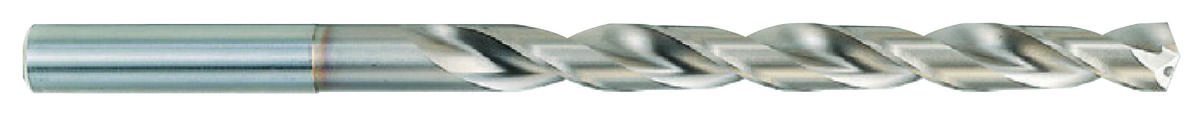

L7591P SG Oil Hole Drill - 9/32"
Specifications
| Coating/Finish | SG (TiN+TiCN) |
|---|---|
| Short Description | - SG Oil-Hole High Performance Drill - Premium Powdered Metal Cobalt Substrate - SG (TiN+TiCN) Coated - 135° Point Angle - Precision h6 Ground Shank |
| Cutting Direction | Right |
| Flute Length | 2.75 |
| Flute Type | CONVENTIONAL SPIRAL |
| Overall Length | 4.625 |
| Shank Size | 0.28125 |
| Shank Type | Endmill Type Shank |
| Coolant-Thru | Yes |
| Point Length (in) | 0 |
| Neck Length | 71.85 |
| Diameter (Fractional) | 0.28125 |
| Drill Point Angle | 135 |
