Nachi
1490296

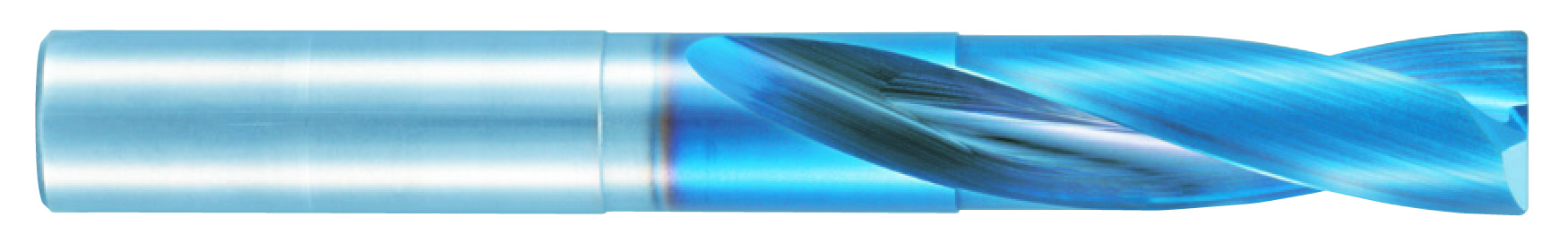

L9830 Aqua EX Flat Bottom Stub - Corner Radius - 5.1mm
Specifications
| Coating/Finish | AQUA EX |
|---|---|
| Drill Point Angle | 180 |
| Short Description | - Carbide Corner Radius Flat Bottom Drill - AQUA EX Coated For High Wear Resistance - Single Margin Design - 180° Point Angle - Precision h6 Ground Shank |
| Flute Length | 24 |
| Shank Type | Endmill Type Shank |
| Shank Size | 6 |
| Overall Length | 60 |
| Cutting Direction | Right |
| Diameter (Metric) | 5.1 |
| Flute Type | CONVENTIONAL SPIRAL |
| Point Length (in) | 0 |
| Neck Length | 27 |
| Coolant-Thru | No |
