Nachi
1496970

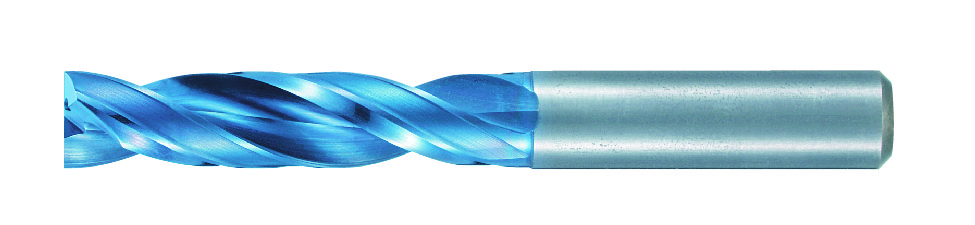

L9813 Aqua EX Flat Bottom Oil Hole 3D - 3/4
Specifications
| Coating/Finish | AQUA EX |
|---|---|
| Drill Point Angle | 180 |
| Short Description | - Carbide Coolant-Thru Flat Bottom Drill - AQUA EX Coated For High Wear Resistance - Double Margin Design For Added Stability - 180° Point Angle - Precision h6 Ground Shank |
| Flute Length | 86 |
| Shank Type | Endmill Type Shank |
| Shank Size | 20 |
| Overall Length | 171 |
| Cutting Direction | Right |
| Flute Type | CONVENTIONAL SPIRAL |
| Point Length (in) | 0 |
| Neck Length | 88 |
| Coolant-Thru | Yes |
| Diameter (Fractional) | 0.75 |
