Nachi
41000233

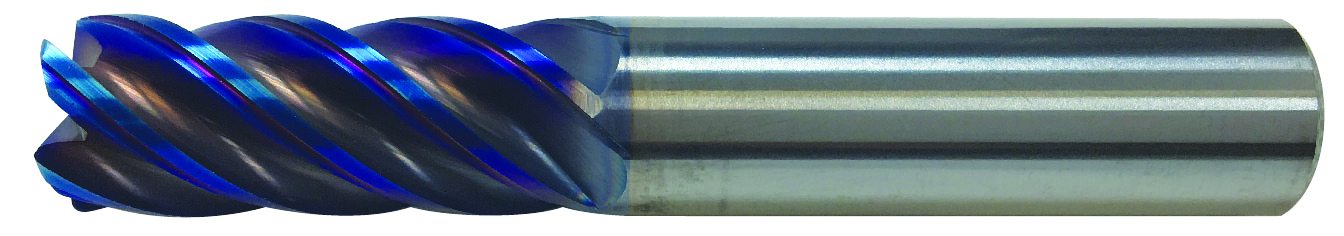

L9707 0.625" 5FL AQUA V MILL CORNER RADIUS 0.06"
Specifications
| Coating/Finish | Aqua Mill |
|---|---|
| Corner Radius | 0.06 |
| Cutting Direction | Right |
| Short Description | - Variable helix, variable index to reduce vibration and chatter - 5 flute design for faster feed rates and better surface finish - Excellent at HSM/HEM milling strategies - Aqua Mill nano-layer coating for high heat and wear resistance |
| Shank Size | 0.625 |
| Overall Length | 3.5 |
| Length of Cut | 1.625 |
| Diameter (Fractional) | 0.625 |
| End Mill Material | Carbide |
