OSG
1005111608

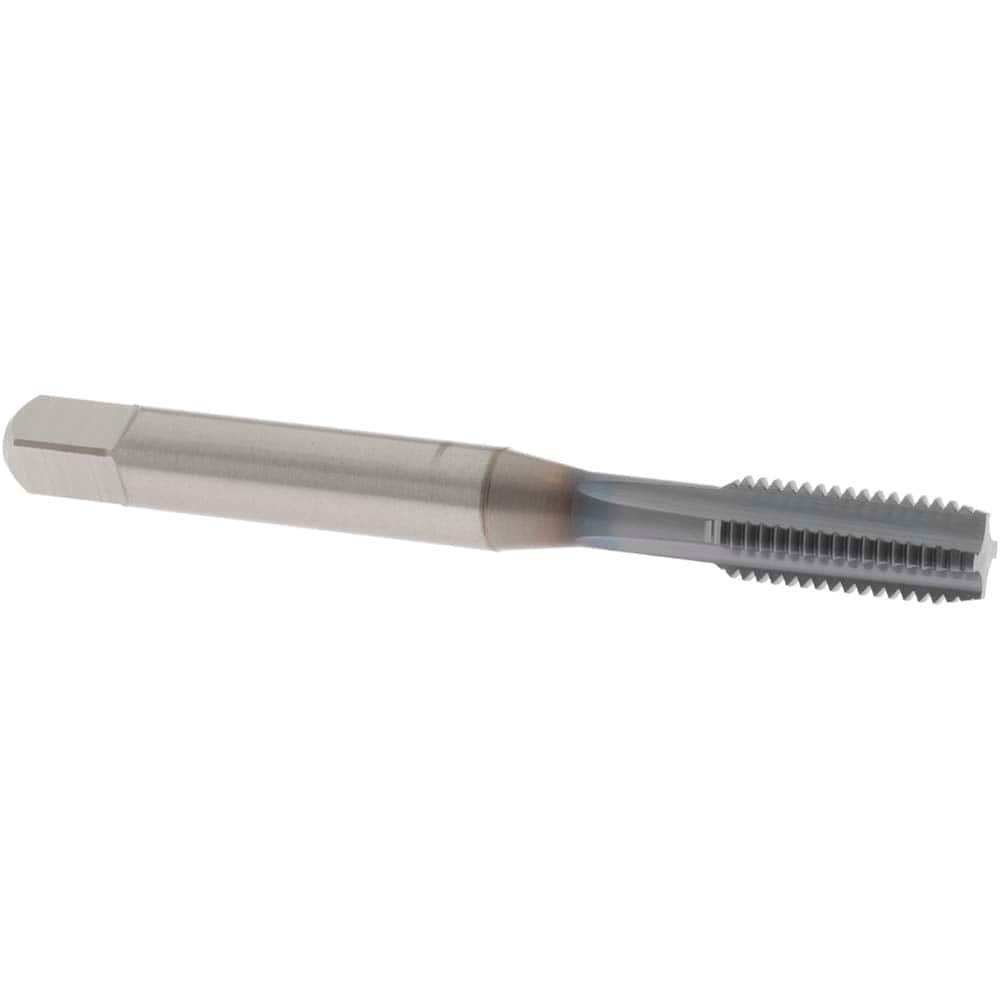

1/4-28 H4 4FL 2.5P EXOTAP VC-X
Specifications
| Coating/Finish | V |
|---|---|
| Overall Length | 2.50" |
| Chamfer | 2.5P - 3P |
| Short Description | The Tapping Solution for Hardended Steels 42-52 Rc |
| Chamfer (Decimal) | 0.1071 |
| Blind Hole Add | 0.0714 |
| Full Thread | 0.8809 |
| Threads per Inch | 28 |
| Shank Diameter | 0.255" |
| Thread Length | 0.586" |
| Neck Length | 0.988" |
| Thread Type | UNF |
