OSG
1005113808

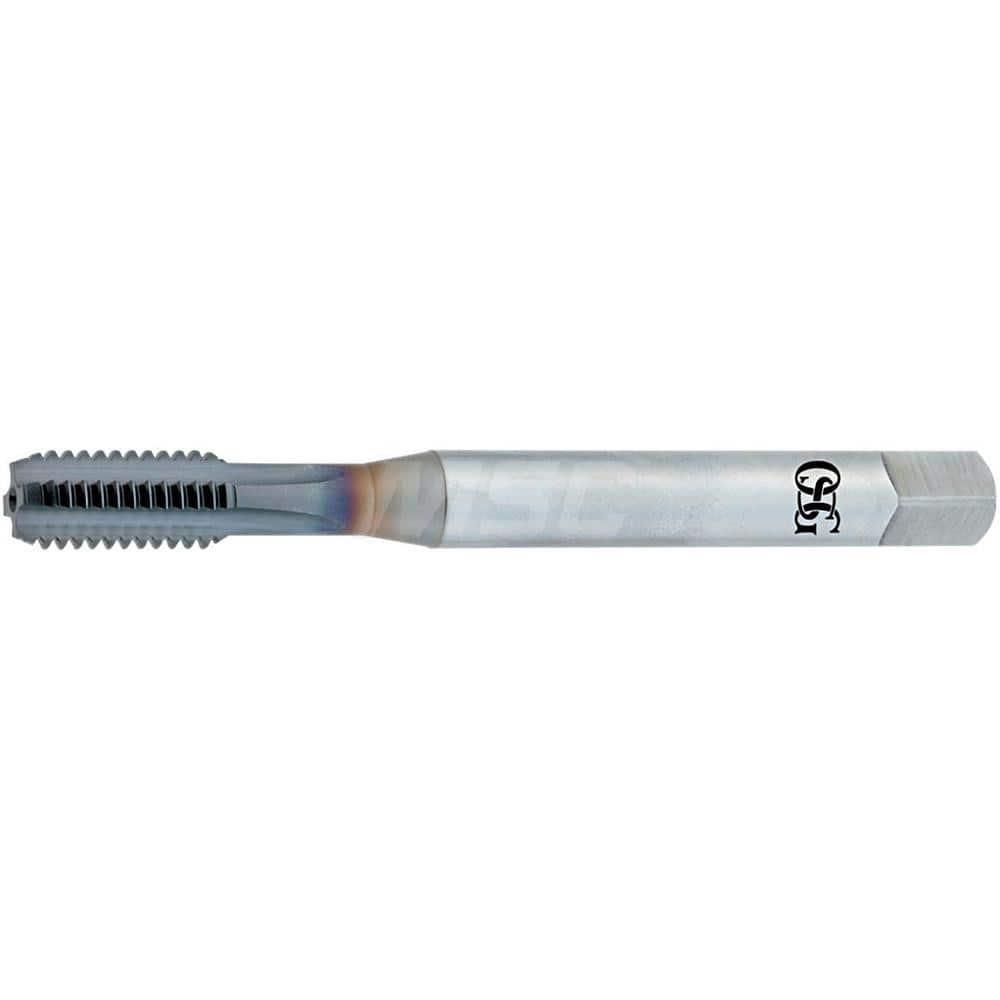

5/8 - 11 H6 2.5P 5FL EXOTAP VC-X
Specifications
| Coating/Finish | V |
|---|---|
| Overall Length | 3.81" |
| Chamfer | 2.5P - 3P |
| Short Description | The Tapping Solution for Hardended Steels 42-52 Rc |
| Chamfer (Decimal) | 0.2727 |
| Blind Hole Add | 0.1818 |
| Full Thread | 1.8533 |
| Threads per Inch | 11 |
| Shank Diameter | 0.480" |
| Thread Length | 1.091" |
| Neck Length | 2.126" |
| Thread Type | UNC |
| Tap Size | 5/8" |
