OSG
1005201108

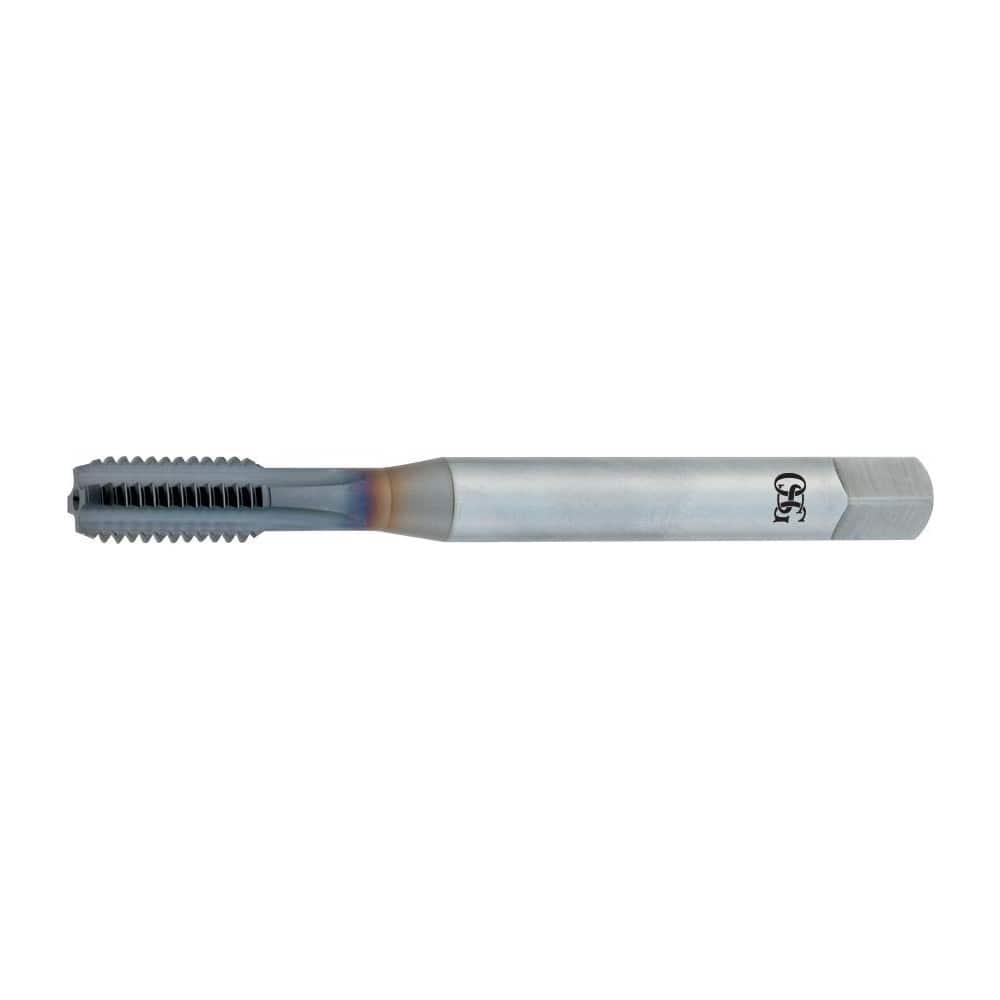

7/16-14 H5 4FL BOTT EXO-DC DiN TiCN
Specifications
| Coating/Finish | V |
|---|---|
| Overall Length | 3.93" |
| Chamfer | 1.5P - 2P |
| Short Description | Premium Threading Solution for Cast Iron & Aluminum Castings |
| Chamfer (Decimal) | 0.1428 |
| Blind Hole Add | 0.1428 |
| Full Thread | 1.5692 |
| Threads per Inch | 14 |
| Shank Diameter | 0.322" |
| Thread Length | 0.858" |
| Neck Length | 1.712" |
| Thread Type | UNC |
| Tap Size | 7/16" |
