OSG
1005201708

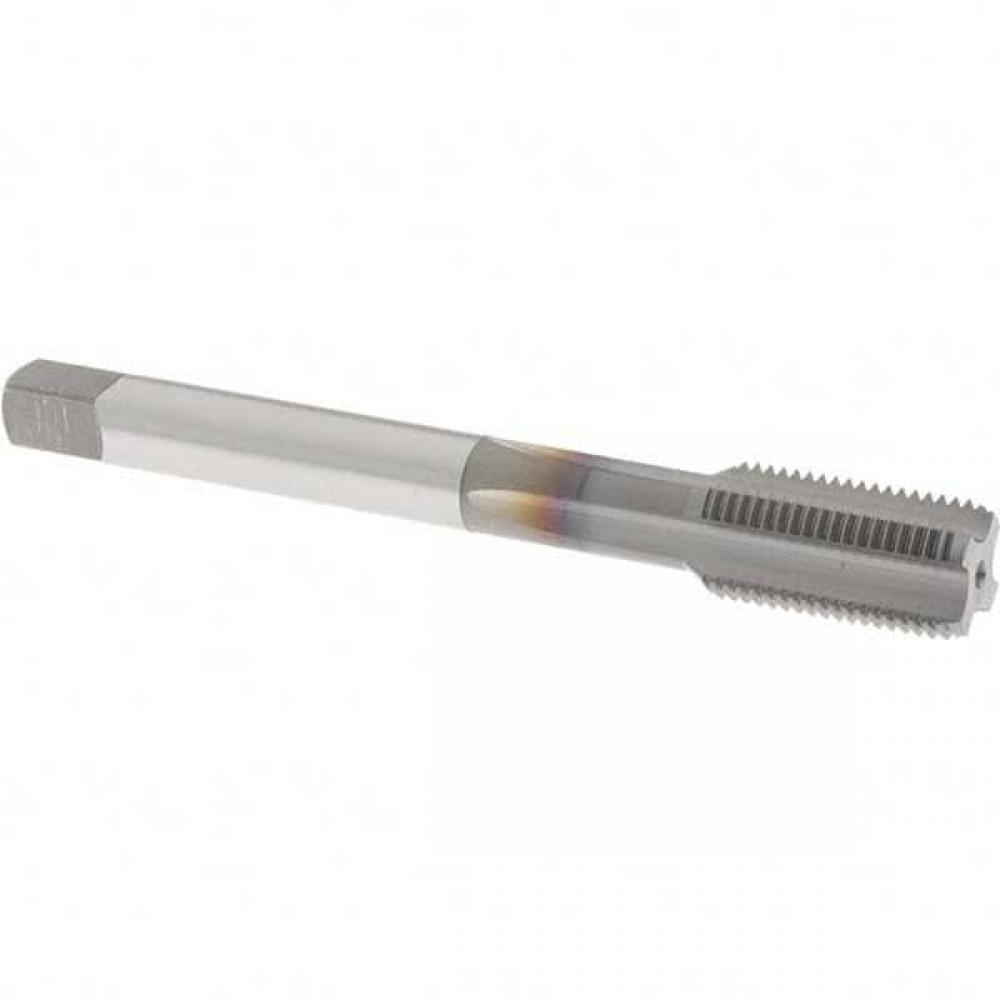

1/2-20 H5 4FL BOTT EXO-DC DiN TiCN
Specifications
| Coating/Finish | V |
|---|---|
| Overall Length | 3.93" |
| Chamfer | 1.5P - 2P |
| Short Description | Premium Threading Solution for Cast Iron & Aluminum Castings |
| Chamfer (Decimal) | 0.1 |
| Blind Hole Add | 0.1 |
| Full Thread | 1.833 |
| Threads per Inch | 20 |
| Shank Diameter | 0.367" |
| Thread Length | 0.921" |
| Neck Length | 1.933" |
| Thread Type | UNF |
