OSG
1010400

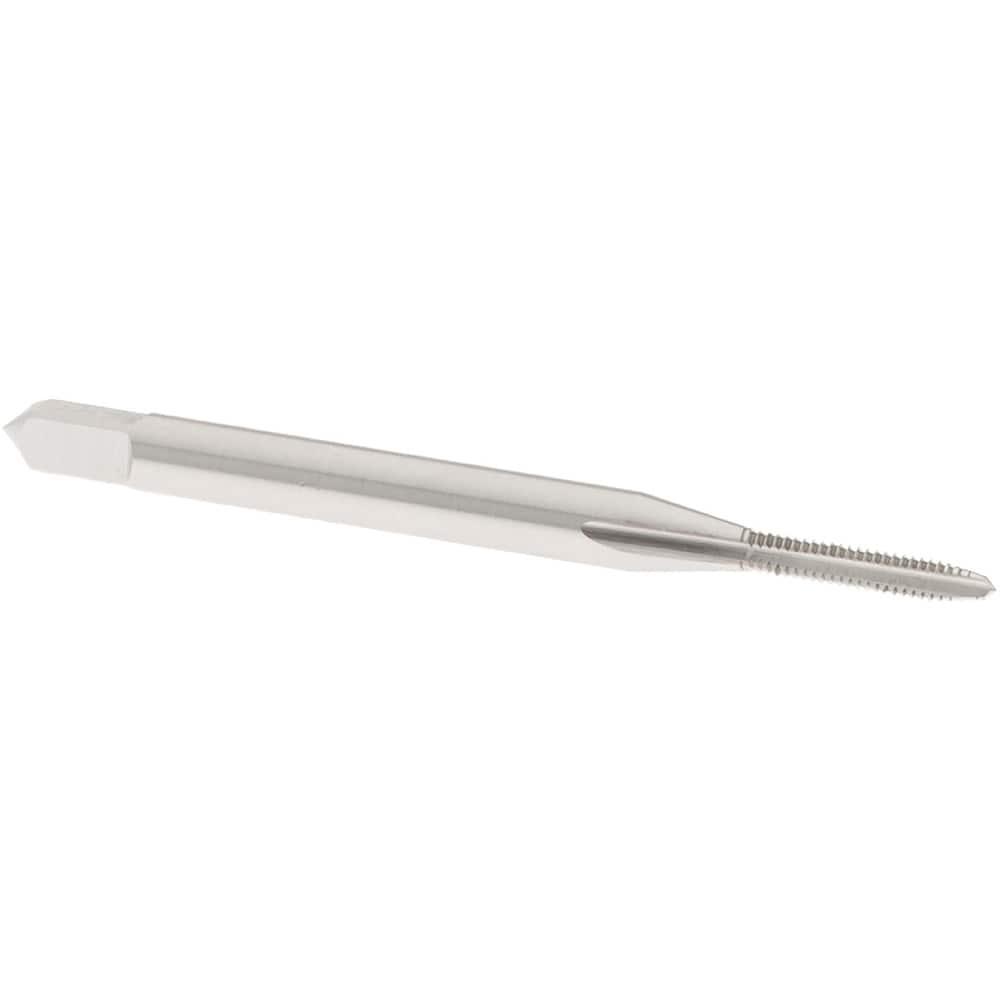

1-64 H2 2FL PLUG
Specifications
| Coating/Finish | Bright |
|---|---|
| Overall Length | 1.68" |
| Chamfer | 3.5P - 4.5P |
| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.0702 |
| Blind Hole Add | 0.0312 |
| Full Thread | 0.2998 |
| Threads per Inch | 64 |
| Shank Diameter | 0.140" |
| Thread Length | 0.370" |
| Thread Type | UNC |
