OSG
1011400
2-64 H2 3FL BOTT
Specifications
| Coating/Finish | Bright |
|---|---|
| Overall Length | 1.75" |
| Chamfer | 1.5P - 2P |

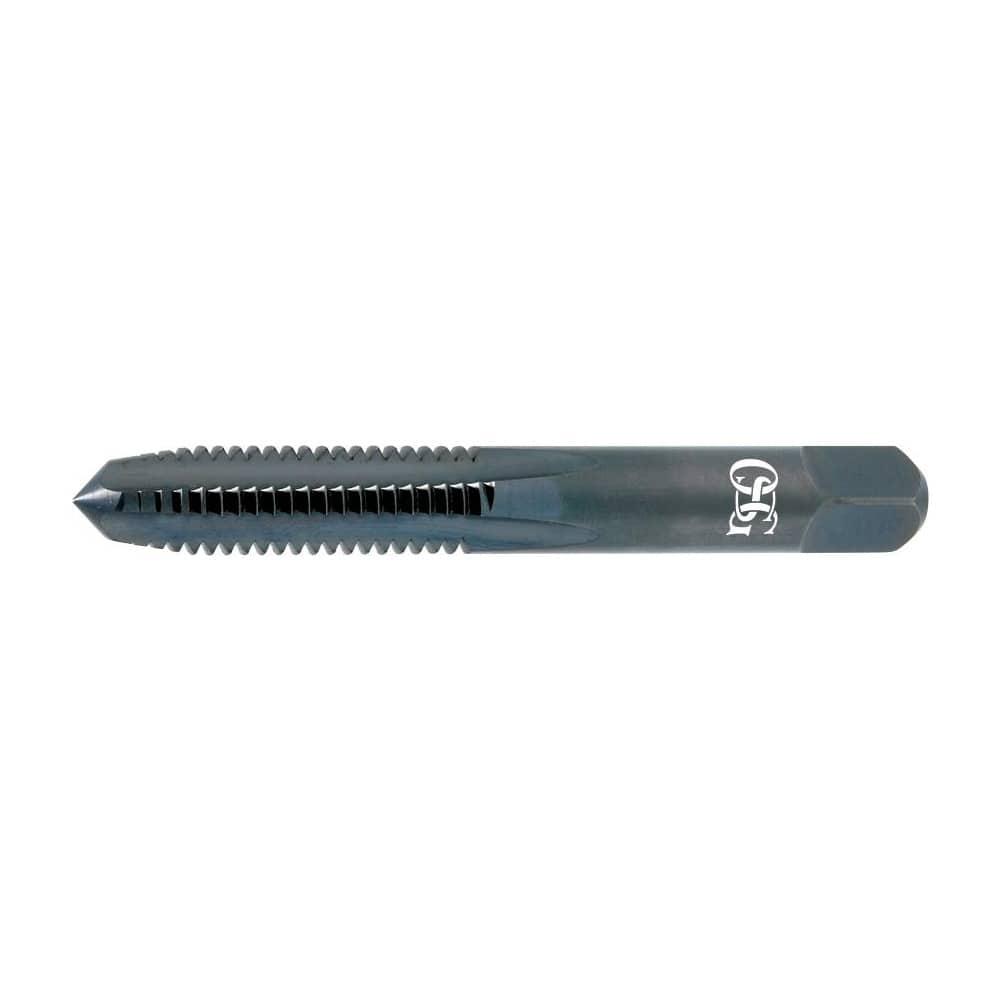

| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.0312 |
| Blind Hole Add | 0.0312 |
| Full Thread | 0.4058 |
| Threads per Inch | 64 |
| Shank Diameter | 0.140" |
| Thread Length | 0.437" |
| Thread Type | UNF |
