OSG
1011908

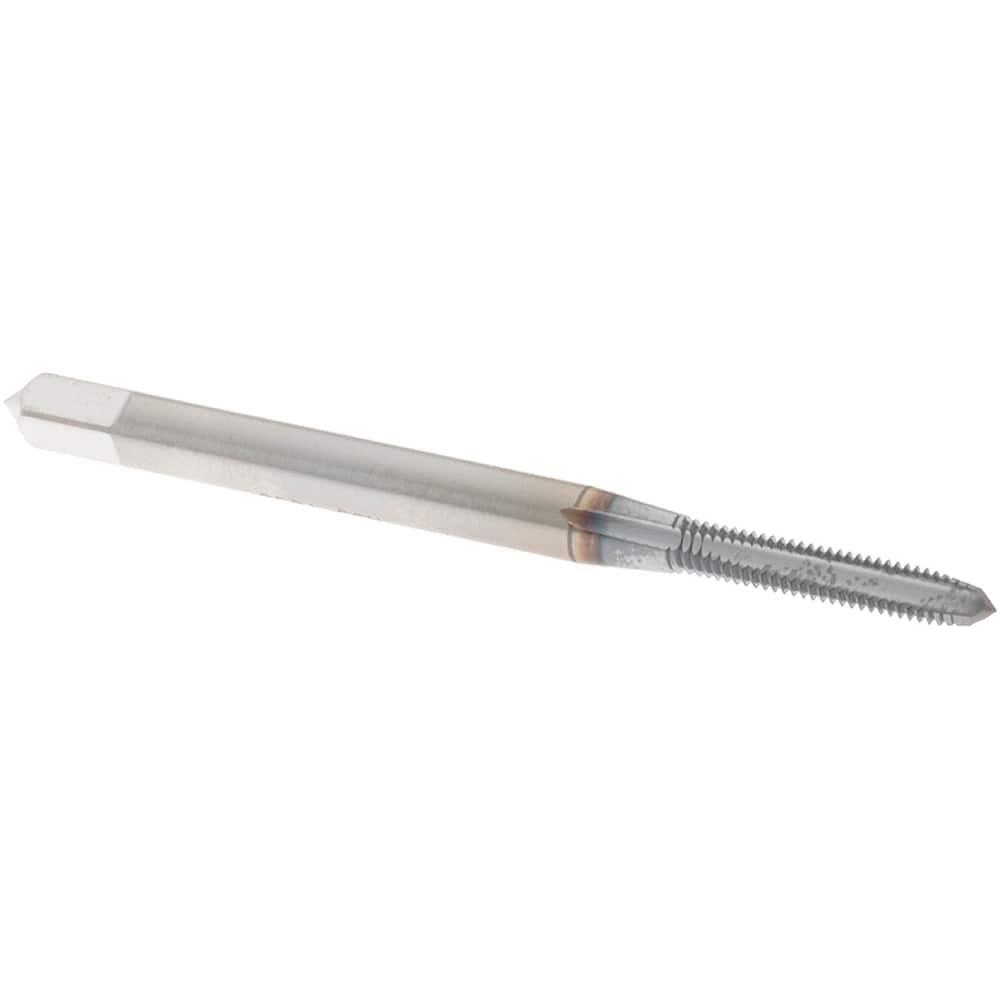

3-56 H2 3FL PLUG TICN
Specifications
| Coating/Finish | TiCN |
|---|---|
| Overall Length | 1.81" |
| Chamfer | 3.5P - 4.5P |
| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.0806 |
| Blind Hole Add | 0.0358 |
| Full Thread | 0.4154 |
| Threads per Inch | 56 |
| Shank Diameter | 0.140" |
| Thread Length | 0.496" |
| Thread Type | UNF |
